R2G Power Relay
R2G Power Relay

R2G Power Relay

Features

The R2G Power Relay is a high quality and durable product that is perfect for a variety of industrial and commercial applications. This relay is available in 1 or 2 poles and features a high capacity design that makes it perfect for powering large loads. The R2G Power Relay also features a high sensitive of consumed power, ensuring that it can handle even the most demanding loads without issue. Additionally, the relay features up to 8mm.

certificate Request A Quote

Share Our Social

R2G Power Relay Product Details

  • Available for 1 and 2 poles, a variety of high-capacity models
  • High sensitive of consumed power 400mW
  • With up to 8mm of insulation distance between coil and contacts
  • High insulation with 10kv of shock resistant voltage
  • Meet with the ambient temperature of 85℃

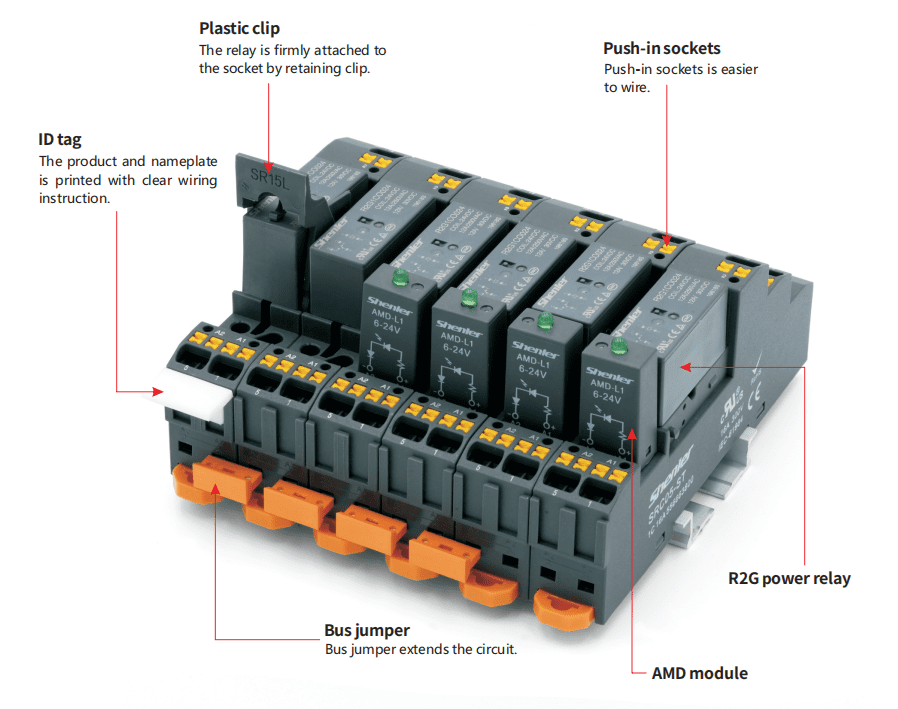

R2G Power Relay Product Details

R2G power relay consists of a relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: SRC05-ST RG2 socket, SRC08-ST RG2 socket, SRC05-E RG2 socket, SRC08-E RG2 socket, and SRB05-E RG2 socket.

Automotive micro relay appliance

R2G

Our workshops have clean control, dust free, constant temperature and humidity. Everyone should on the anti-static clothes when enter workshop.

R2G 02

Contact Configuration 1C/1A 2C/2A
Load Resistive load (AC-1) 12A,16A/250VAC,30VDC 8A/250VAC,30VDC
Motor load (AC-15) 1/2HP, 240VAC;3/4HP,120VAC 1/3HP,240VAC,1/4HP,120VAC
Max. switching capacity (resistive) 3000VA,360W;4000VA,480W 2000VA,240W
Min. switching capacity 170mW(17V/10mA)
Initial contact resistance ≤100mΩ
Material Ag alloy
Electric durability
(110% rated voltage , 85℃)
3.5mm: 1NO 12A; 1NC 6A ≥105 Cycles(85ºC 5.0mm: 2NO 8A; 2NC 4A ≥105Cycles(85ºC)
5.0mm: 1NO 16A; 1NC 8A ≥10 Cycles(85ºC)         –
Durability (Normal temperature 3.5mm: 1NO 12A; 1NC 12A ≥5x104Cycles (23ºC) 5.0mm: 2NO 8A; 2NC 8A ≥5×10 Cycles(23ºC)
5.0mm: 1NO 16A; 1NC 16A ≥3×10 Cycles(23ºC)
Mechanical durability Dc≥5000×104 Cycles (18000 Ops/h); Ac≥3000×104 Cycles (18000 Ops/h)
Pick-up voltage (23℃) (Rated voltage) DC≤70%
Drop-out voltage (23℃) (Rated voltage) DC:≥10%
Maximum voltage (23℃) (Rated voltage) 130%
Insulation resistance ≥1000MΩ (500VDC)
Coil operating power DC(W) approx. 0.43
AC(VA) approx. 1
Operate time ≤10ms
Release time (at nominal voltage) ≤5ms
Initial breakdown voltage Between open contacts 1000VAC/1min (leakage current 1mA) 1000VAC/1min (leakage current 1mA)
Between poles 2500VAC/1min (leakage current 1mA
Between contacts and coil 5000VAC/1min (leakage current 1mA) 5000VAC/1min (leakage current 1mA)
Insulation characteristics IEC 60664 UL840 Rated voltage 250VAC
Pollution level 3
Overvoltage level III
Protection level IP50
Storage temperature/ humbidity -55~+85℃/ ≤85%RH (18 months)
Working temperature/ humbidity -40~+85℃/ 5%~85%RH (No condensation)
Air pressure 86~106KPa
Shock resistance 10G (half-sine shock pulse: 11ms)
Vibration resistance 10~55Hz double-amplitude:1.5mm
Mounting PCB
Unit weight approx. 13g

Coil Specifications (23℃)

Nominal voltage V.DC 5 6 9 12 24 48 60 110
Coil resistance Ω 62.5 90 200 360 1440 5220 8570 28800
Nominal voltage V.AC 24 115 230 / / / / /
Coil resistance Ω 350 8100 23800 / / / / /
Remark: Coil resistance under coil voltage 110V is measured with a tolerance of ±10%Ω, above coil voltage, 110V is measured with a tolerance of ±15%Ω.

Contact Specification

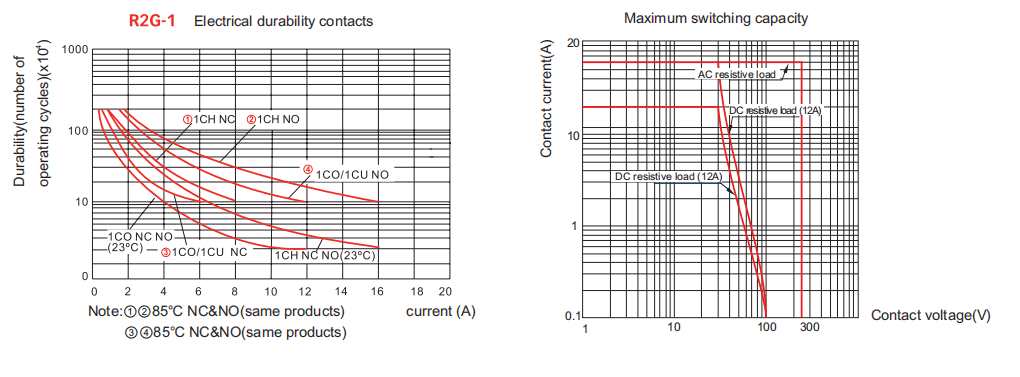

Contact Specification RG2 1

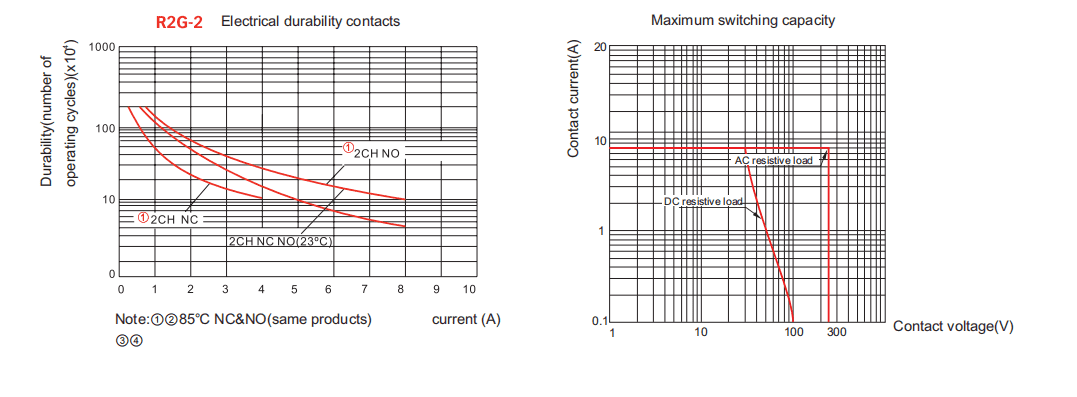

Contact Specification RG2 2

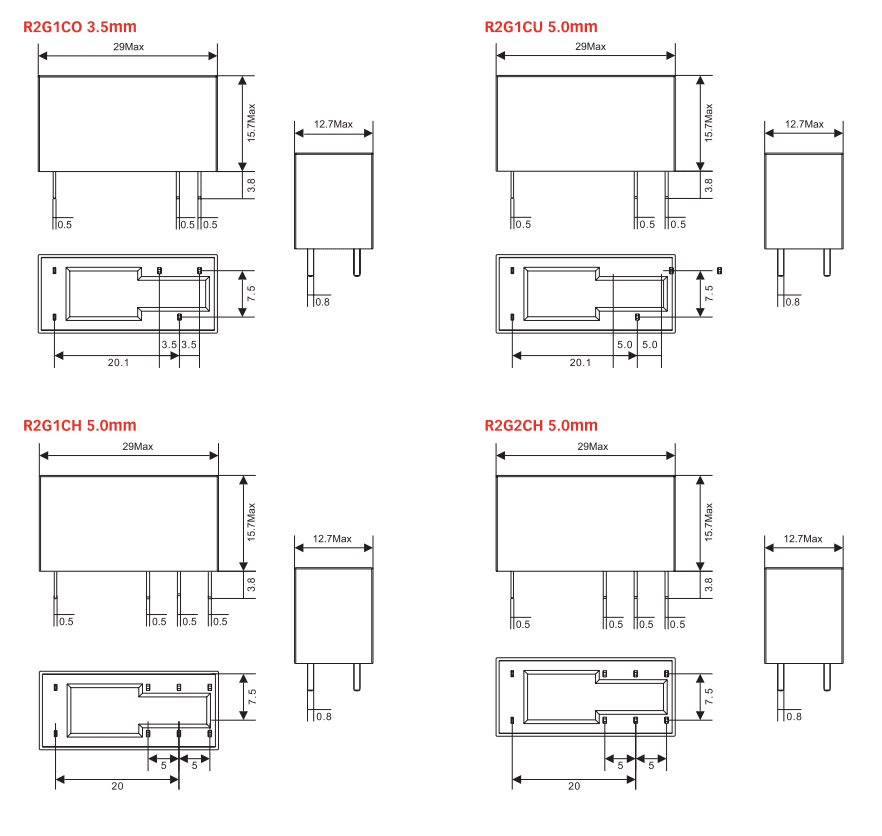

R2G Power Relay Dimensions (mm)

RG2 DIMENSIONS

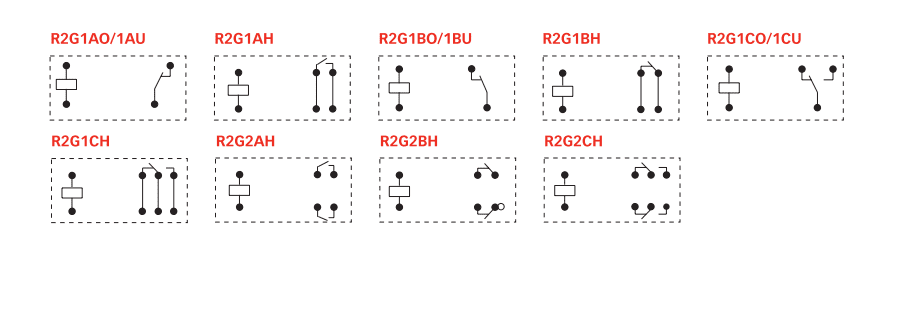

Wiring Diagrams

RG2 WIRING DIAGRAMS
