RKE Miniature General Purpose Relay
RKE Miniature General Purpose Relay

RKE Miniature General Purpose Relay

Features

The RKE series 2-pole 7A or 4-pole 5A general purpose power relays are a compact, easy-to-use and cost-effective solution for a variety of switching applications. It is available in both AC and DC versions, with a non-polar LED integrated in the relay and a lockable test button with inspection window. The coil identification can be easily determined by testing the button color (AC red/DC blue), which makes the installation more convenient.

certificate Request A Quote

Share Our Social

RKE Miniature General Purpose Relay Details

  • Available in 2 pole 7A or 4 pole 5A.
  • With non-polarity LED integrated into the relay.
  • Equipped with a lockable test button and inspection window.
  • Identification of coils through test button color.
  • Conformity with RoHS Directive.

RKE Miniature General Purpose Relay

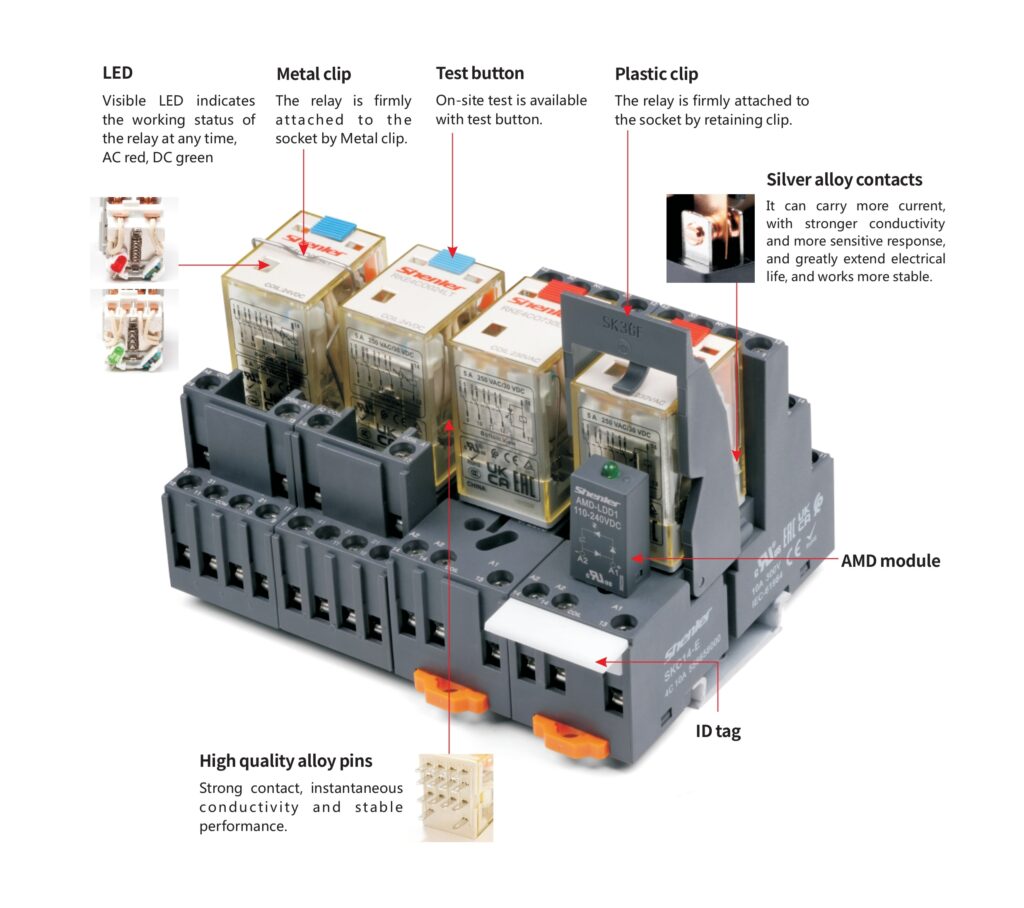

RKE general power relay consists of a Relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: SYF08A-E socket, SYF11A-E socket, SYF14A-E socket, SYF08A socket, SYF11A socket, SYF08A socket, SKB08-E socket, SKB14-E socket, and etc.

RKE Miniature General Purpose Relay Characteristics

Air pressureAir pressure

Contact Configuration 2C 4C
Load Resistance 7A/250VAC, 30VDC 5A/250VAC, 30VDC
Motor load 1/6HP, 240VAC
Max. switching capacity (resistive) 1750VA, 210W 1250VA, 150W
Min. switching capacity 170mW(17V/10mA)
Initial contact resistance ≤50mΩ
Material Ag alloy
Electric durability(110%rated voltage, 55℃) ≥20 x 104Cycles (1800 Ops/h)
Electric durability (Normal temperature) ≥40x 104Cycles (360 Ops/h)
Mechanical durability ≥2000 x 104Cycles (18000 Ops/h)
Pick-up voltage (23℃) (Rated voltage) DC:≤75%, AC:≤80% 50/60Hz
Drop-out voltage (23℃) (Rated voltage) DC:≥10%, AC:≥30% 50/60Hz
Maximum voltage (23℃) (Rated voltage) 110%
Insulation resistance ≥500MΩ (500VDC)
Coil operating power DC (W) approx. 0.9
AC (VA) approx. 1.2
Operate time&Release time (at nominal voltage) ≤20ms
Initial breakdown voltage Between open contacts 1000VAC/1min (leakage current 1mA)
Between poles 2000VAC/1min (leakage current 1mA)
Between contacts and coil 4000VAC/1min (leakage current 1mA)
Insulation
characteristics
IEC 60664 UL840
Rated voltage 250VAC
Pollution level 3
Overvoltage level III
Impulse withstand voltage (waveform: 1.2/50us) 4000V
Protection level IP50
Storage temperature/ humidity -55~+85℃/ ≤85%RH (18 months)
Working temperature/ humidity -55~+70℃/ 5%~85%RH (No condensation) ★
Air pressure 86~106KPa
Shock resistance 10G (half-sine shock pulse: 11ms)
Vibration resistance 10~55Hz double-amplitude:1.0mm
Mounting Plug in
Unit weight approx. 35g

★ If the storage exceeds 18 months (calculated from the factory date), it is recommended to re-test the parameters before using.

Coil Specifications (23℃)

Nominal voltage V.DC 6 12 24 48 110 220 /
Coil resistance Ω 40 180 640 2600 13000 42000 /
Nominal voltage V.AC 6 24 36 48 115 230 380
Coil resistance Ω 11.5 180 370 640 4430 16500 42000
Remarks: Coil resistance under coil voltage 110V are measured with a tolerance of ±10%Ω, and above coil voltage 110V is measured with a tolerance of ±15%Ω.

Contact Specification

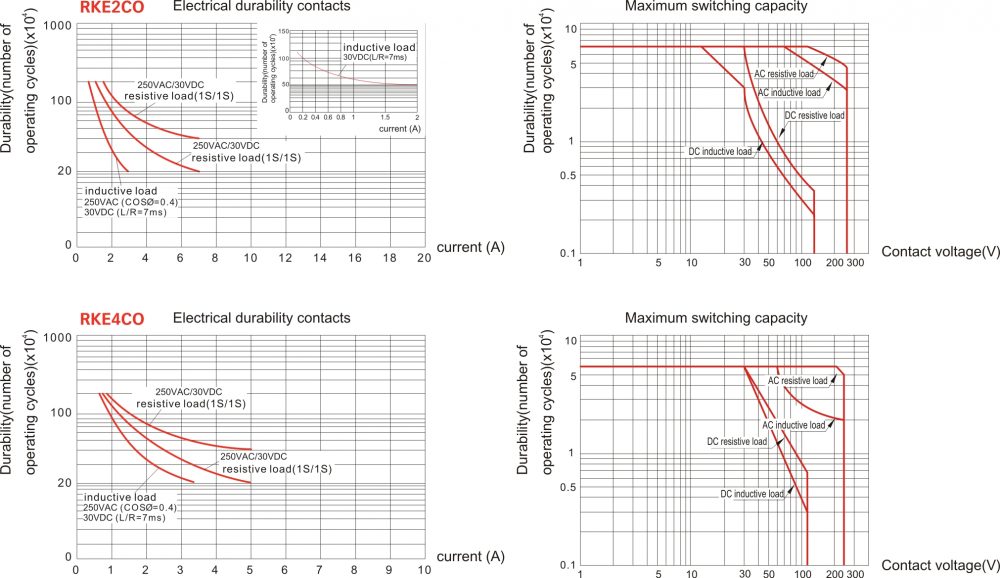

RKE general power relay graph

RKE General Power Relay

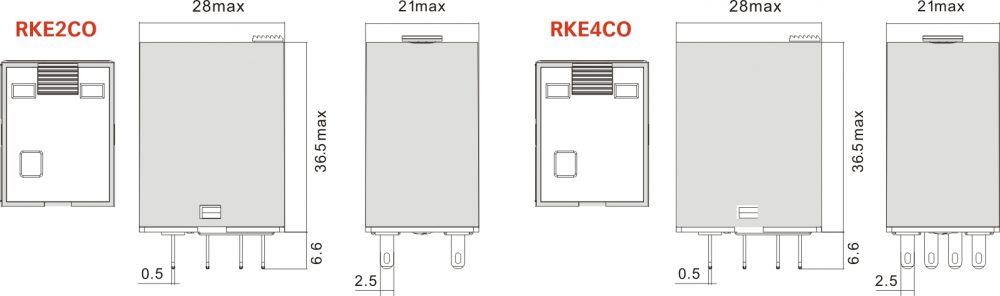

Dimensions (mm)

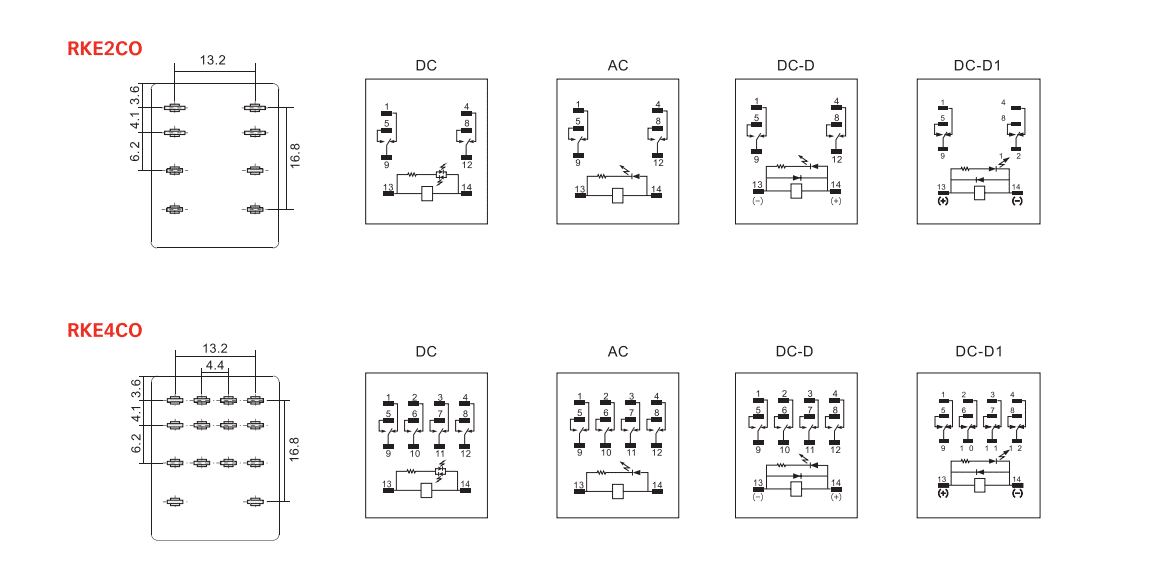

Wiring Diagrams

RKE Miniature General Purpose Relay Wiring Diagram
