SRC05-P & SRC08-P R2G Socket
Features
SRC08-P R2G socket is a reliable and easy-to-use socket designed to work with R2G relays. With this outlet, you can connect or disconnect devices quickly and easily, making it perfect for any application. This socket is also compatible with SRC05-P.
SRC05-P & SRC08-P R2G sockets are two-way sockets for connecting R2G relays. It has screws that can be tightened to hold the relay in place.
Request A Quote
Share Our Social
SRC05-P & SRC08-P R2G Socket Characteristics
| Type | SRC05-P | SRC08-P | ||
| Nominal load | Current | A | 12 | 8 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | – | ||
| Wire size | AWG/mm² | – | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 10 | 10 | |
Relay, Accessories Selection Table
|
Socket |
Metal Clip |
|
SRC05-P |
SR15M |
|
SRC08-P |
SR1520M |
Dimensions (mm)

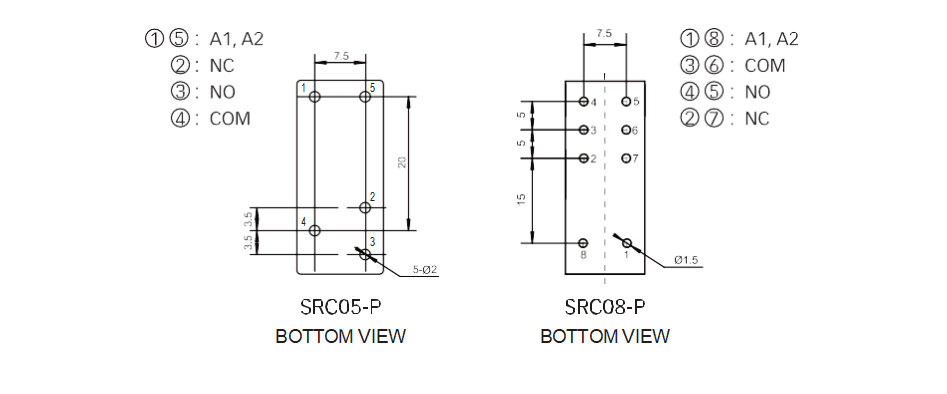

Connection Diagrams
