Slim relay

Slim relays are an important type of electrical relay that is used in a variety of applications. They are known for their slim design, which allows them to be used in tight spaces. Slim relays also have a number of other benefits, including a low profile, a high dielectric strength, and a high resistance to shock and vibration.?

Slim relays are one of the most popular types of relays on the market. They are used in a variety of applications, including automotive, marine, and industrial.

If you are in the market for a slim relay manufacturer, Shenle is an ideal choice for you. Shenle produces high-quality, competitively priced relays that are perfect for a variety of applications. In addition, Shenle offers excellent customer service and is committed to providing the best possible experience for our customers.

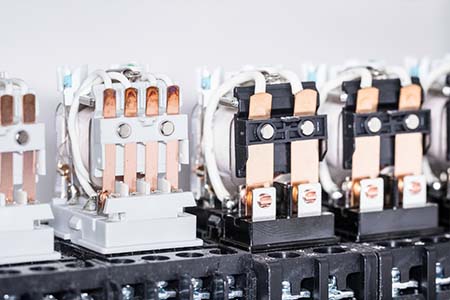

The key features of the slim relay

Slim Relay is a relay with compact design and space saving.

Some key features of ultra-thin relays include:

  • Small size, ideal for use in tight spaces
  • Low power consumption, ideal for battery-operated equipment
  • Its high switching capacity enables it to handle high current
  • Its sealed housing makes it resistant to environmental conditions

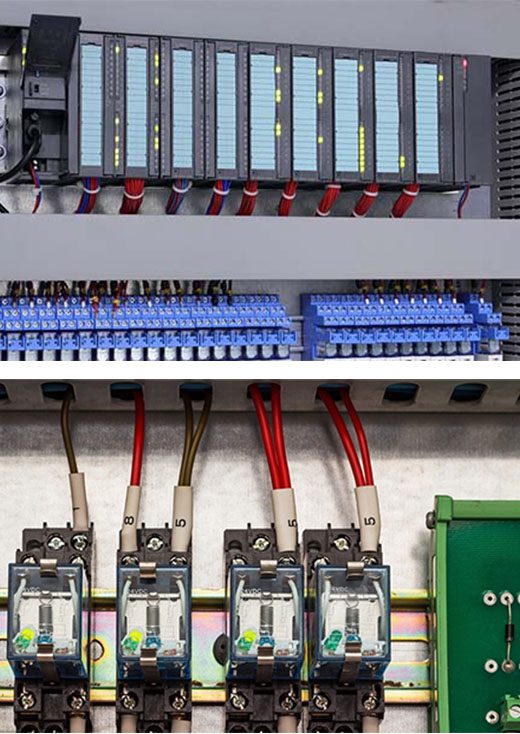

Why Shenler slim relay?

There are several reasons why someone might choose the Shenler slim relay:

Shenler’s products offer superior advantages, including modularity, Din rail mounting, and a choice of screw or spring clip connection options.

Our products offer a wide array of standard input voltages, ranging from 5V to 230V AC and DC.

Our ultra-thin relays are well-known around the world for their top-notch craftsmanship. Our relays are built with precision and attention to detail, ensuring a perfect result every time.

Shenle ultra-thin relays are manufactured with a PA6.6/1 compound to ensure compliance with UL standards for flammability.

Legible labeling using white markers enhances the readability of wiring diagrams.

The relay coil activation is indicated by a conspicuous green LED.

Cross-connections between input and output can be made quickly and easily using multi-pole short-circuit connectors in a push type configuration.

The universal socket is a great choice for hassle-free replacement of relays, both solid state and electromechanical. It’s simple to use and offers reliable performance.

Protective circuitry is available on some modules for improved security.

Many types of connection methods can be used in wiring projects: screw connections, spring clip connections, and more.

The applications of the slim relay

The Slim Relay is a versatile component with a wide range of uses. The device is unique because it is extremely thin and light, yet still able to efficiently switch electrical signals.

Some of its common applications include:

Automotive Systems

Ultra-thin relays are used in automotive applications such as controlling headlights, turn signals, and other electronic components.

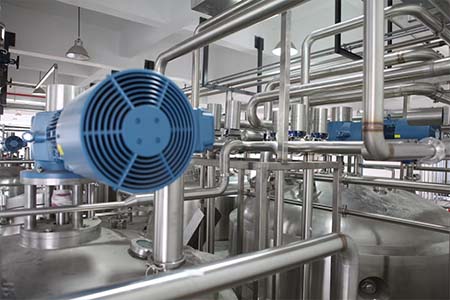

Industrial automation

Slim relays are used in industrial automation systems, such as controlling motors, pumps, and other high-power equipment.

Consumer Electronics

Low-profile relays are used in a variety of consumer electronic devices such as air conditioners, refrigerators, and washing machines.

HVAC Systems

This low-profile relay is used in heating, ventilation, and air conditioning (HVAC) systems to control fans, compressors, and other components.

Security Systems

Slim relays are used in security systems to trigger alarms, open or close doors, and control other security-related functions.

Medical equipment

Ultra-thin relays are used in medical equipment such as ventilators, infusion pumps, and dialysis machines.

What is Slim relay ?-+

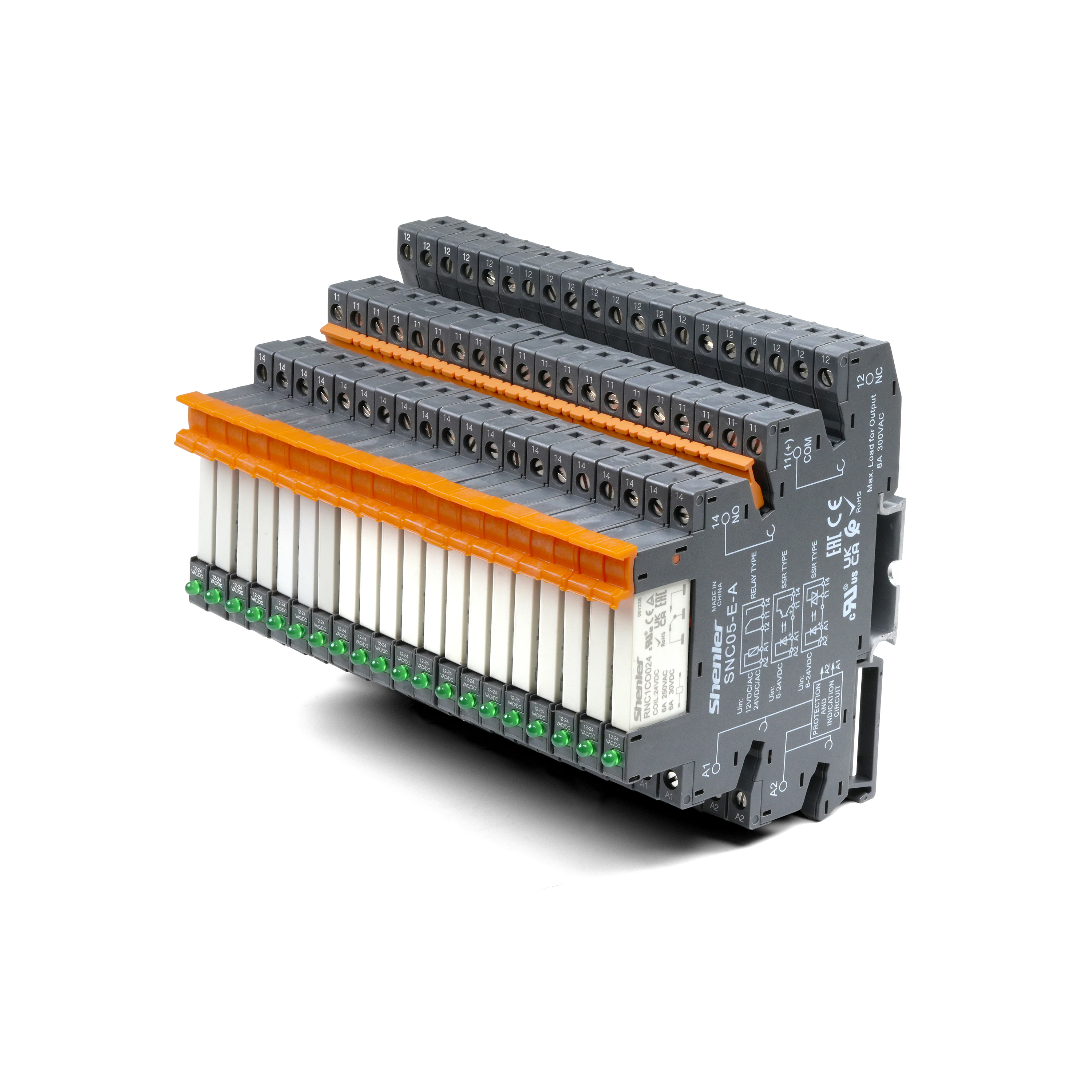

Slim relay is a thin-structured, highly insulated relay type used in PLC applications. It is an interface between controllers and the loads. So we also call it PLC relay, interface relay and miniature relay.

What is Slim relay ? player

Advantages of slim relays-+

Compact size, minimum to 6.3mm thickness. much thinner than normal type relay.

Slim relays are Modular and pluggable.

Save space in cabinet.

Coils can be energized with AC and DC.

With LED built in , some will have indicator and test button for more convenience checking working status, no matter on site or remote operation.

Complete socket/relay base, bus jumper, ID tags available to well fulfil the installation requirement.

Advantages of slim relays player

Applications of slim relays-+



Industrial electrical panels

On cabinet

CNC system

Intelligent manufacturing

Applications of slim relays player

Shenler Slim relay approvals-+

Conform to IEC61810-1:2015 and UL508 standard.

Well approved by cURus, CE, EAC,UKCA, TUV, CSA , CP , RoHS.

Shenler Slim relay approvals player

Why choose Shenler ?-+

Shenler is a manufacturer, with 36,000 sqm space, 800,000 pcs output per day.

Shenler quality is high in market, mainly for European market.

Shenler owns a UL & TUV accredited laboratory, develop products based on international standard basis.

Shenler relays are full series with complete sockets and accessories for choice.

Why choose Shenler ? player
