TKB Timer Relay
TKB Timer Relay

TKB Timer Relay

Features

TKB timing relay is a miniature timing relay, it is controlled by built-in special IC program. The device is designed for applications that require precise timing, such as lighting, heating, and motor starting. TKB timer relays also have a reset time of less than 100 ms, making them an excellent choice for industrial applications.

certificate Download Request A Quote

Share Our Social

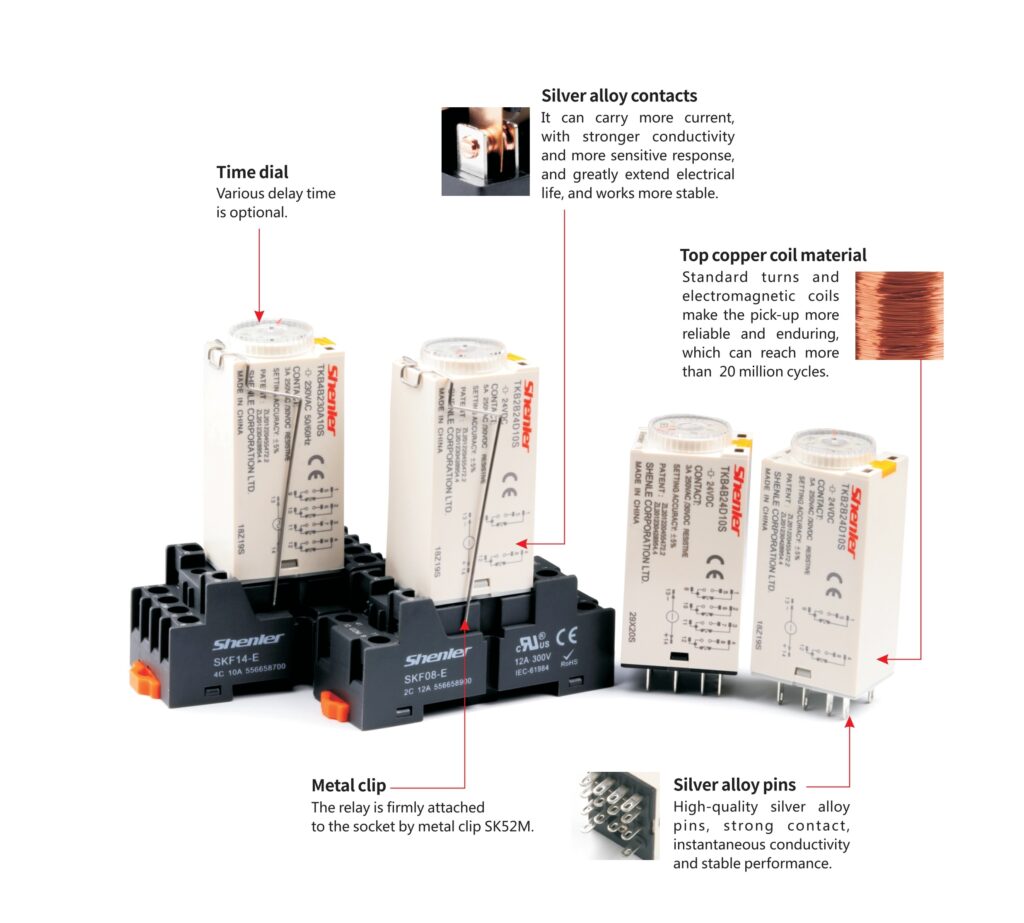

TKB Timer Relay Details

  • Built-in special IC program – controlled miniature time relay
  • Reset time includes a midway reset time of less than 100 ms
  • Use a screwdriver to set the time
  • Conforms to IEC60947-5-1: 2016 (GB/T14048.5-2017) standard

TKB Timer Relay

TKB timer relay consists of a relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: SKB08-E socket, SKB14-E socket, SKC08-E socket, SKC11-E socket, SKC14-E socket and etc.

Characteristics

Configuration TKB2B    |    TKB2E TKB4B   |  TKB4E
Rated supply voltage 120VAC, 230VAC 50/60Hz; DC24V
Operating voltage range Rated voltage 85-110% (90%-110% is DC12V)
Power consumption 3.5W
Max.output load 5A, 250 VAC (p.f.=1) 3A, 250 VAC (p.f.=1)
Min. output load 10 mA, 17 VDC
Repetitive error ±2% (FS max.)
Setting error ±5% (FS max.)
Voltage error ±2% (FS max.)
Temperature error ±2% (FS max.)
Resetting time Min.time: 0.2 sec
Insulation resistance 100MΩ (DC500V)
Dielectric strength Between current-carrying and Non-current-carrying parts 2000V 50/60Hz min
Between control output terminals and operating circuit1500V 50/60Hz min
Between contacts 1000V 50/60Hz min
Vibration resistance Destruction 10~55Hz with 0.75mm single amplitude each in 3directions for 2 hours each
Malfunction 10~55Hz with 0.5mm single amplitude each in 3 directions for 10 minutes each
Shock resistance Destruction 30G
Malfunction 10G
Storage temperature -55~+85℃/ ≤85%RH (18 months) ☆
Ambient temperature -10ºC~55ºC
Ambient humidity 35%~85%RH
Life expectancy Mechanical >107 (under no load, at 1,800 operations/hour)
Electrical >105
Weight approx. 35g

☆If the storage exceeds 18 months (calculated from the factory date), it is recommended to re-test theparameters before using.

TKB Timing Charts

TKB timer graph

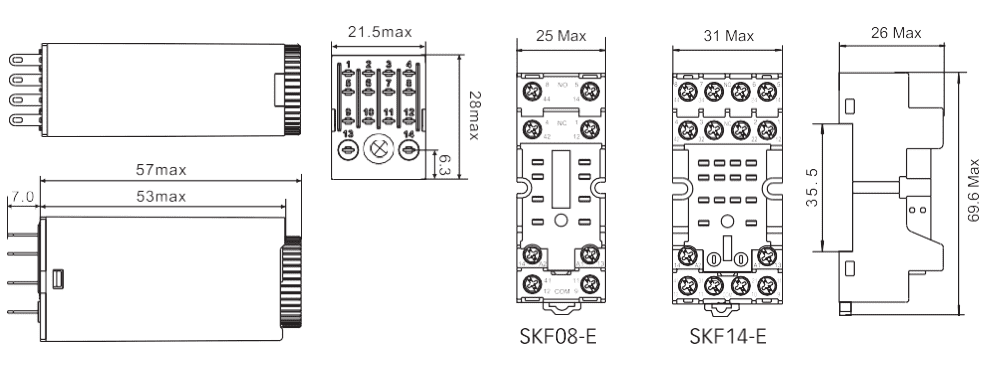

TKB Timer Relay Dimensions (mm)

TKB Timer Relay DIMENSIONS

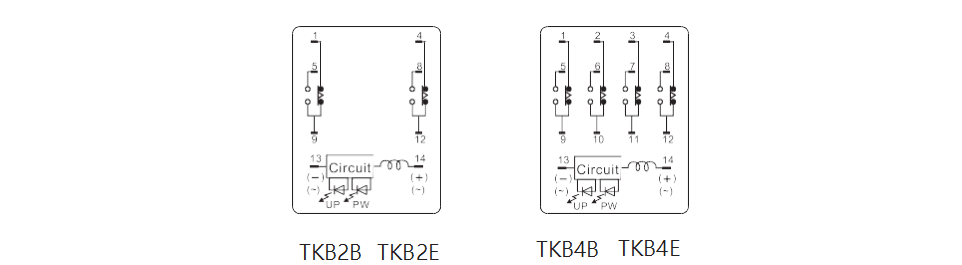

Wiring Diagrams

TKB Timer Relay Wiring Diagram

Contact Us

Applicable socket

SKB08-E & SKB14-E Socket

SKB08-E & SKB14-E Socket

SKB08-E & SKB14-E Socket For RKE & RKF Relay.

View The Product Request A Quote
SKC08-E & SKC11-E & SKC14-E Socket

SKC08-E & SKC11-E & SKC14-E Socket

SKC08-E & SKC11-E & SKC14-E socket for RKM/RKE/RKF ...

View The Product Request A Quote
SKC08-ST & SKC14-ST Socket

SKC08-ST & SKC14-ST Socket

SKC08-ST & SKC14-ST RKE socket for RKM/RKE/RKF relay.

View The Product Request A Quote
SKF08-E & SKF14-E RKE & RKF Socket

SKF08-E & SKF14-E RKE & RKF Socket

SKF08-E & SKF14-E RKE socket for RKM/RKE/RKF relay.

View The Product Request A Quote
