RKL Miniature Power Relay
RKL Miniature Power Relay

RKL Miniature Power Relay

Features

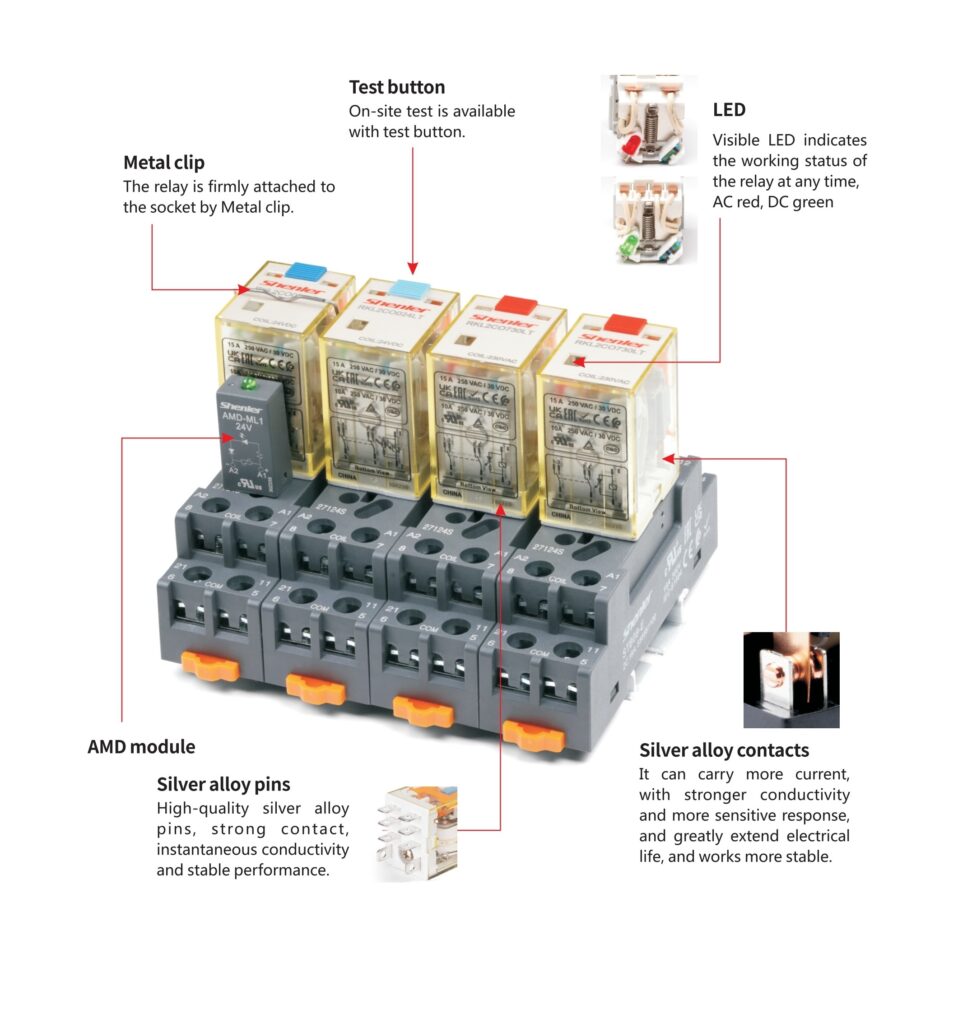

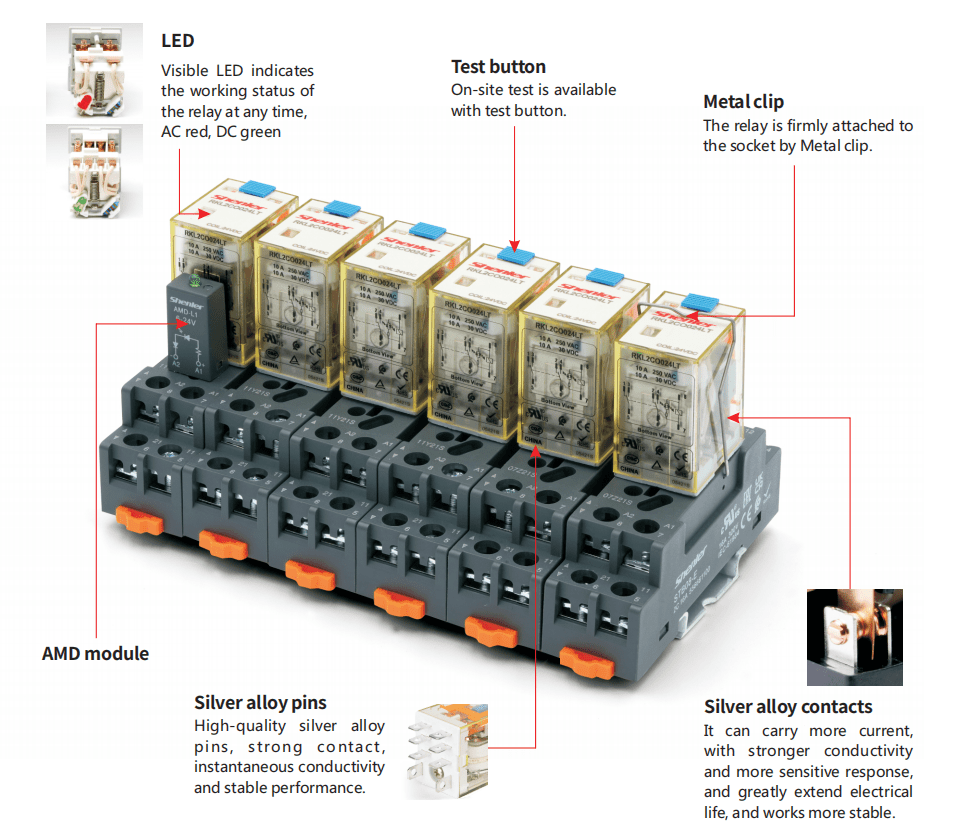

The RKL Miniature Power Relay is a compact, versatile and easy-to-use relay ideal for any number of applications. With its 16 amp capacity for one pole and 10 amp capacity for 2, 3, and 4 poles, the RKL relay can handle a variety of tasks. In addition, non-polar LEDs integrated into the relay allow for more flexible wiring, and the lockable test button and inspection window allow the user to quickly and easily identify the coil.

certificate Download Request A Quote

Share Our Social

RKL Miniature Power Relay Details

  • Available in 1 pole 16A or 2,3,4 pole 10A.
  • With non-polarity LED integrated into the relay.
  • Equipped with a lockable test button and inspection window.
  • Identification of coils through test button color.
  • Conformity with RoHS Directive

RKL Miniature Power Relay

RKL miniature power relay consists of a Relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: STB08-E socket, STB11-E socket, and STB14-E socket.

RKL Miniature Power Relay Characteristics

Contact Configuration 1C 2C 3C 4C
Load Resistance 16A/250VAC 30VDC 10A/250VAC 30VDC
Motor load 1/2HP, 120VAC,
1HP, 240VAC
1/3HP 240VAC 1/6HP 240VAC
Max. switching capacity (resistive) 4000VA, 480W 2500VA, 300W
Min. switching capacity 170mW(17V/10mA)
Initial contact resistance ≤50mΩ
Material Ag alloy
Electrical durability 1C/3C/4C: ≥ (1800 Ops/h),
2C: ≥20 x (1800 Ops/h)
Mechanical durability ≥1000 x 104Cycles (1800 Ops/h)
Pick-up voltage (23℃) (Rated voltage) DC:≤75%, AC:≤80% 50/60Hz
Drop-out voltage (23℃) (Rated voltage) DC:≥10%, AC:≥30% 50/60Hz
Maximum voltage (23℃) (Rated voltage) 110%
Insulation resistance ≥500MΩ (500VDC)
Coil operating power DC (W) approx. 0.9 approx. 0.9 approx. 1.4 approx. 1.5
AC (VA) approx. 1.2 approx. 1.2 approx. 2 approx. 2.5
Operate time ≤20ms
Release time (at nominal voltage) ≤20ms
Initial breakdown voltage Between open contacts 1000VAC/1min (leakage current 1mA)
Between poles 2000VAC/1min (leakage current 1mA)
Between contacts and coil 2000VAC/1min (leakage current 1mA)
Insulation
characteristics
IEC 60664 UL840
Rated voltage 250VAC
Pollution level 3
Overvoltage level III
Impulse withstand voltage (waveform: 1.2/50us) 4000V
Protection level IP50
Storage temperature/ humidity -55~+85℃/ ≤85%RH (18 months)
Working temperature/ humidity -25~+55℃/ 5%~85%RH (No condensation) ★
Air pressure 86~106KPa
Shock resistance 10G (half-sine shock pulse: 11ms)
Vibration resistance 10~55Hz double-amplitude:1.0mm
Mounting Plug in
Unit weight Approx. 35g Approx. 35g Approx. 50g Approx. 65g

Coil Specifications (23℃)

RKL1, RKL2

Nominal voltage V.DC 6 12 24 48 110 220 /
Coil resistance Ω 40 180 640 2600 13000 42000 /
Nominal voltage V.AC 6 24 36 48 115 230 380
Coil resistance Ω 11.5 180 370 640 4430 16500 42000

RKL3

Nominal voltage V.DC 6 12 24 48 110 220 /
Coil resistance Ω 25 100 400 1600 8400 33000 /
Nominal voltage V.AC 6 24 36 48 115 230 380
Coil resistance Ω 6.5 102 230 410 2500 10000 26000



RKL4

Nominal voltage V.DC 6 12 24 48 110 220 /
Coil resistance Ω 24 96 360 1500 6800 29000 /
Nominal voltage V.AC 6 24 36 48 115 230 380
Coil resistance Ω 5 80 180 320 1680 8000 20000
Remarks:Coil resistance under coil voltage 110V are measured with a tolerance of ±10%Ω, and above coil voltage 110V is measured with a tolerance of ±15%Ω.

Contact Specification

RKL relay graph

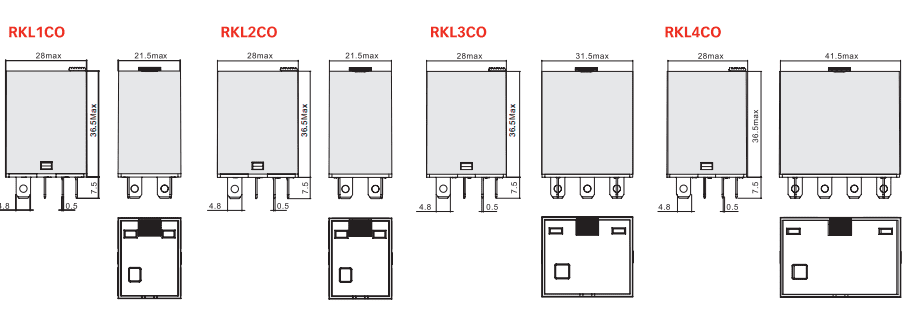

RKL Miniature Power Relay Dimensions (mm)

RKL Miniature Power Relay Dimensions

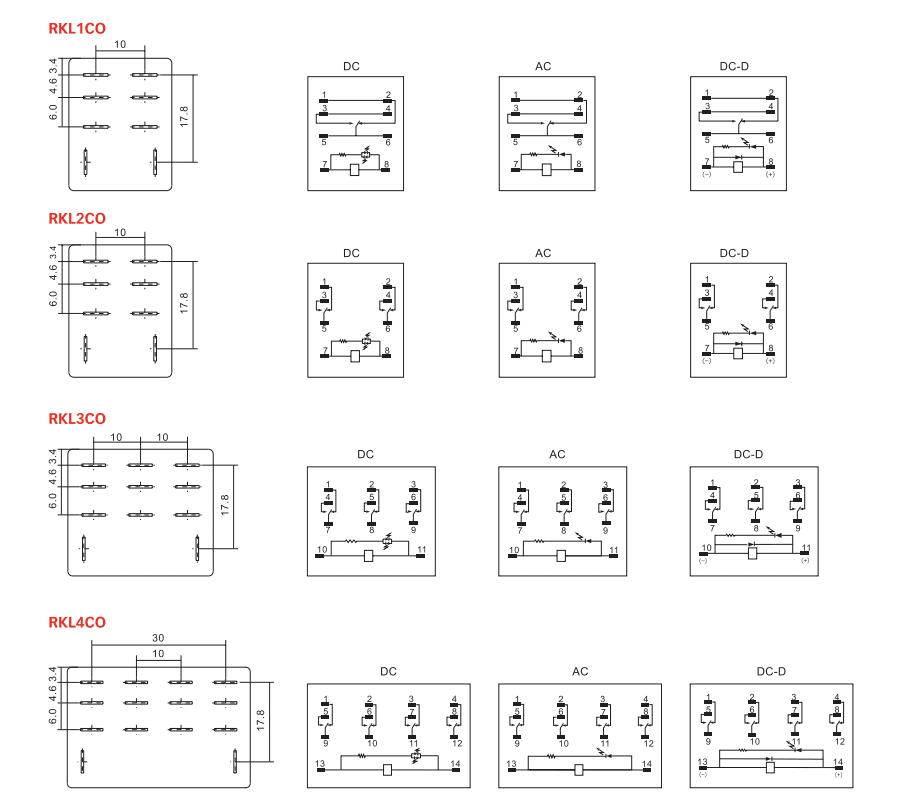

Wiring Diagrams

RKL Miniature Power Relay Wiring Diagrams





























Contact Us

Applicable socket

STB08-E & STB11-E & STB14-E Socket

STB08-E & STB11-E & STB14-E Socket

STB08-E & STB11-E & STB14-E socket for RKL relay.
