SRC05-E & SRC08-E R2G Socket
Features
SRC05-E & SRC08-E sockets are accessories for R2G relays. It is a high quality, reliable socket ideal for use with R2G relays. The SRC05-E & SRC08-E receptacles are made of durable materials and feature a safe, easy-to-use design with an easy-to-use label that locks the relay in place. They are ideal for a variety of applications.
Request A Quote Share Our Social
SRC05-E & SRC08-E R2G Socket Characteristics
| Type | SRC05-E | SRC08-E | ||
| Nominal load | Current | A | 12 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 33 | 37 | |
Relay, Accessories Selection Table
| Socket | ID tag | Bus Jumper | Module |
| SRC05-E |

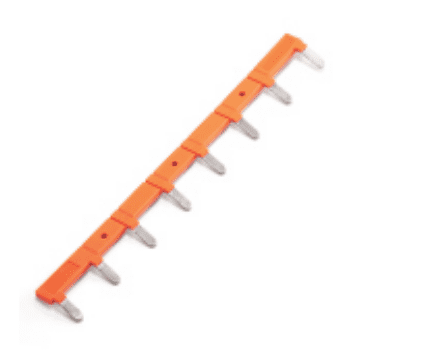

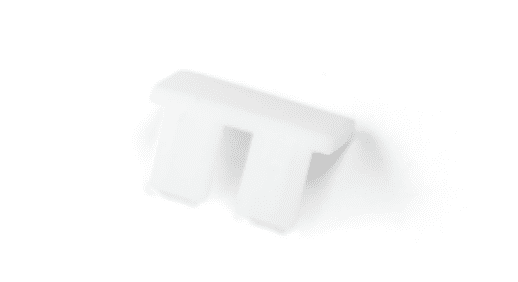

SR2P |  SR08B |
AMD |
| SRC08-E |
Clip Selection Table
| Relay H (mm) | 15 | 20 | 25 |

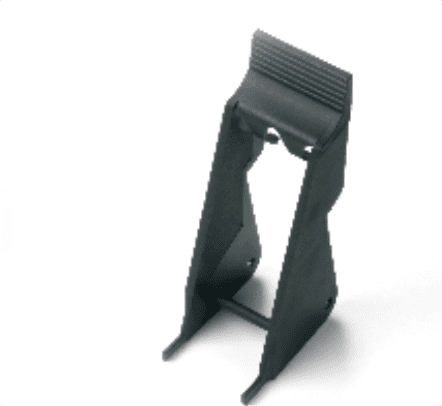

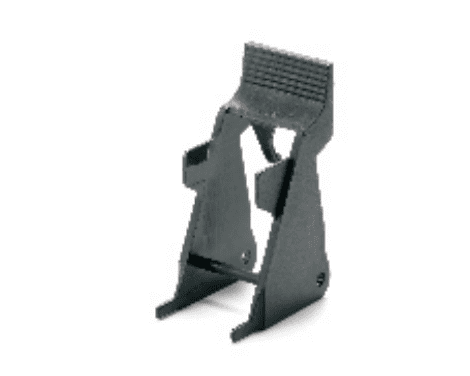

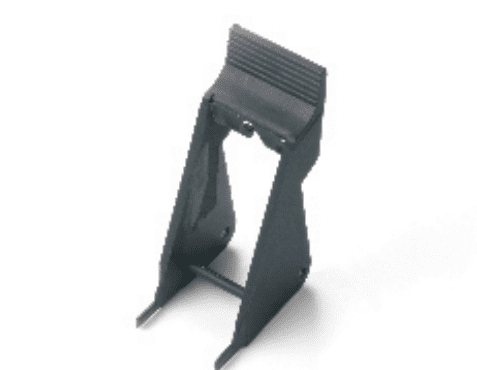

| Clip Type |  SR15L |  SR20F |  SR25C |

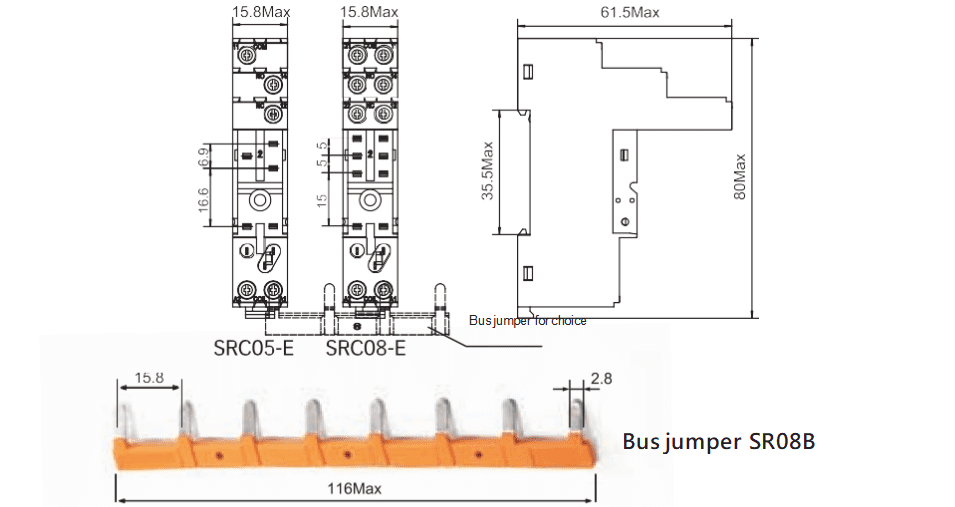

Dimensions (mm)
Connection Diagrams
