SRT05-E & SRT08-E Socket
Features
The SRT05-E & SRT08-E sockets are a high quality product with excellent durability and easy installation. This is a reliable and affordable option for those looking for an RFT Slim Relay Socket.
Request A Quote Share Our Social
SRT05-E & SRT08-E Socket For RFT Slim Relay Characteristics
| Type | Unit | SRT05-E | SRT08-E | |
| Nominal load | Current | A | 16 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 22 | 27 | |
Relay, Accessories Selection Table
| Plastic clip | Bus jumper |
 SR20 |  SR08C |

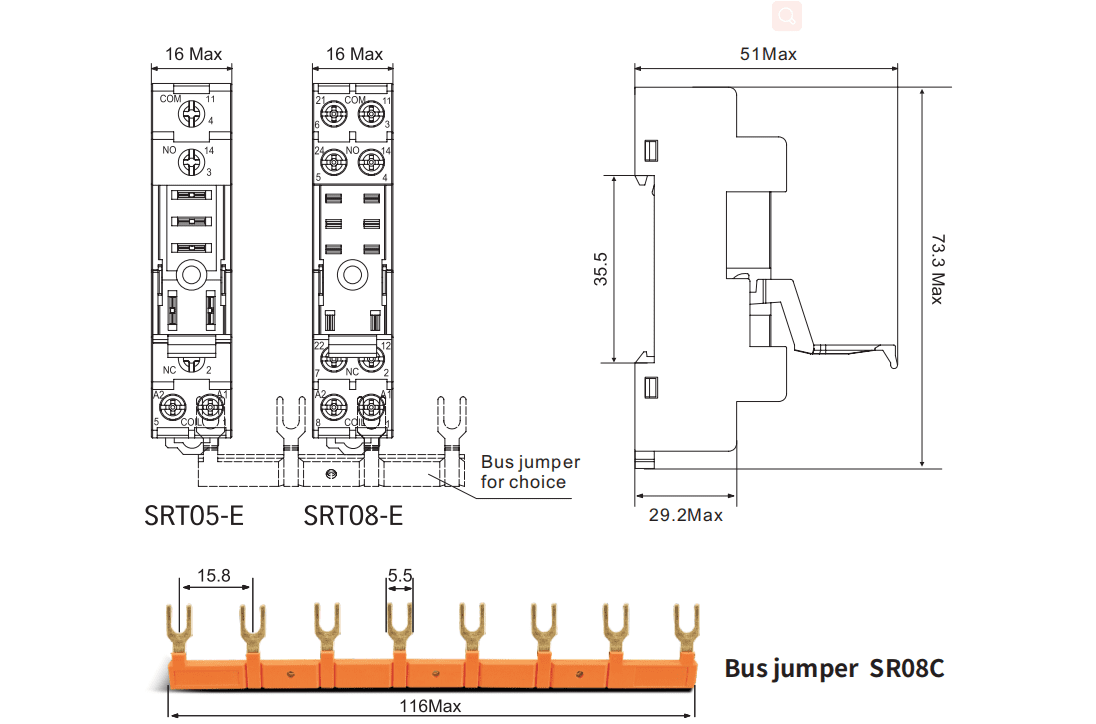

Dimensions (mm)

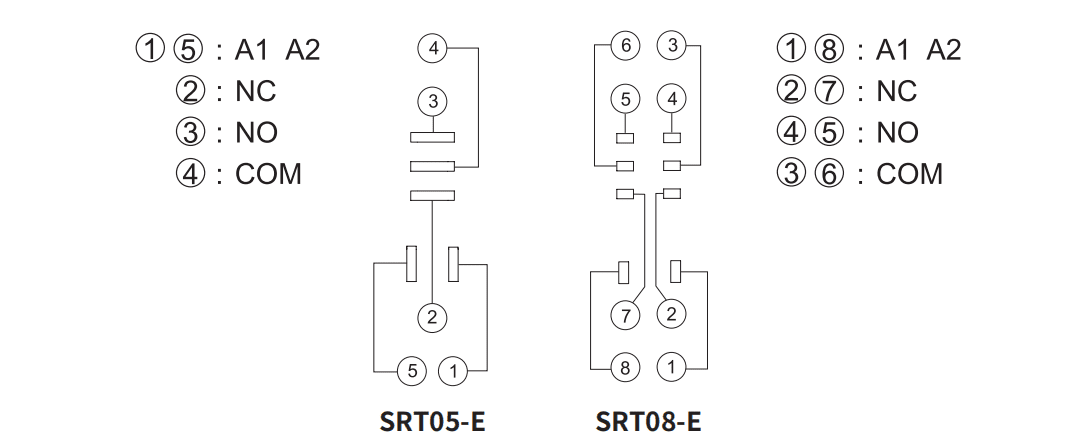

Connection Diagrams
