SRU05-ST & SRU08-ST RFT Socket
SRU05-ST & SRU08-ST RFT Socket
SRU05-ST & SRU08-ST RFT Socket
SRU05-ST & SRU08-ST RFT Socket

SRU05-ST & SRU08-ST RFT Socket

Features

The SRU05-ST & SRU08-ST RFT sockets are compact and easy-to-use sockets that allow users to connect and disconnect relays quickly and easily. Made of durable plastic, this socket is designed for use with RFT slimline relays, ideal for industrial or commercial applications.

certificate Request A Quote

Share Our Social

SRU05-ST & SRU08-ST Push In Type Relay Base For RFT Slim Relay Characteristics

Type Unit SRU05-ST SRU08-ST
Nominal load Current A 16 10
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm 1.0
Wire size AWG/mm² 20-14/0.5-2.5
Ambient temperature °C -40~+85
Unit weight g 35 43

Relay, Accessories Selection Table

Socket Plastic clip ID tag Module Bus jumper
SRU05-ST SR20T

SR20T

SR2P

SR2P

AMD

AMD

ST01CC

ST01CC

SRU08-ST

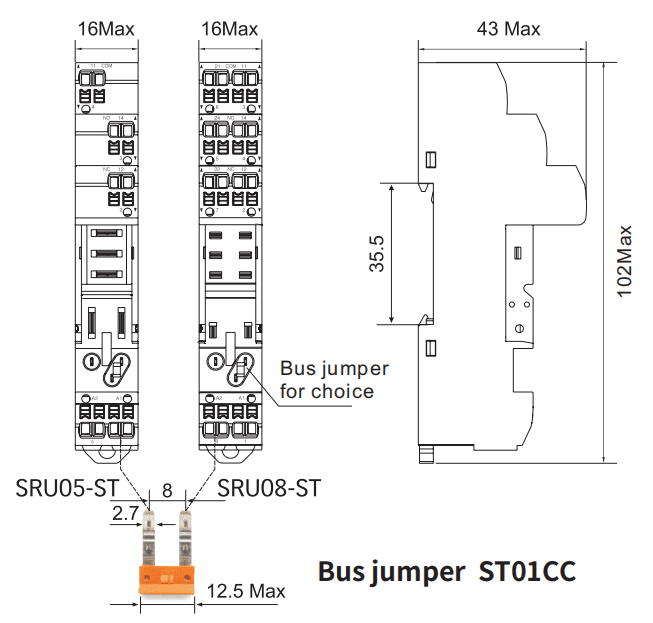

SRU05-ST & SRU08-ST Push In Type Relay Base For RFT Slim Relay Dimensions (mm)

SRU05-ST Dimensions

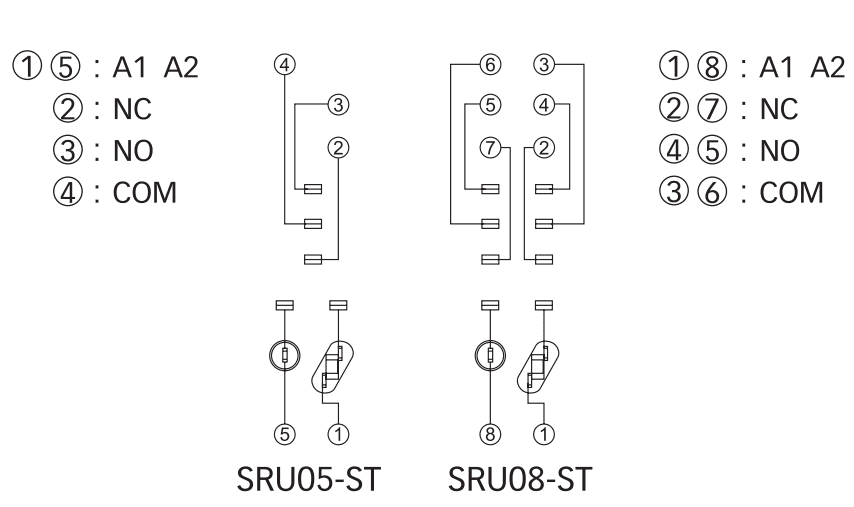

Connection Diagrams

SRU05-ST Connection Diagrams
