SY08-P & SY14-P Socket
Features
The SY08-P and SY14-P Rockets are high performance, specially designed relays and power relays. They are small, lightweight and easy to install and use. SY08-P and SY14-P Rocket are widely used in power distribution, solar system, telecommunication, railway system and marine system.
Request A Quote
Share Our Social
SY08-P & SY14-P Socket Characteristics
| Type | Unit | SY08-P | SY14-P | |
| Nominal load | Current | A | 10 | 6 |
| Voltage | V | 300 | ||
| Dielectric strength | V/min | 2000 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 7 | 7 | |
Relay, Accessories Selection Table
| Socket | Plastic clip |
| SY08-P |
SK36M |
| SY14-P |

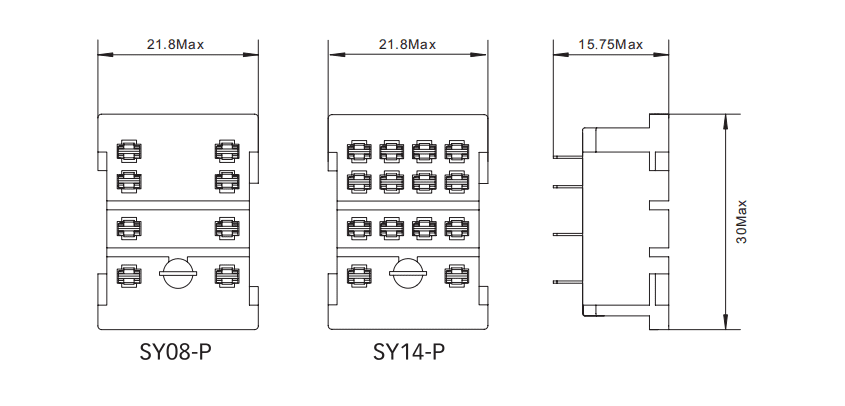

SY08-P & SY14-P Socket Dimensions (mm)

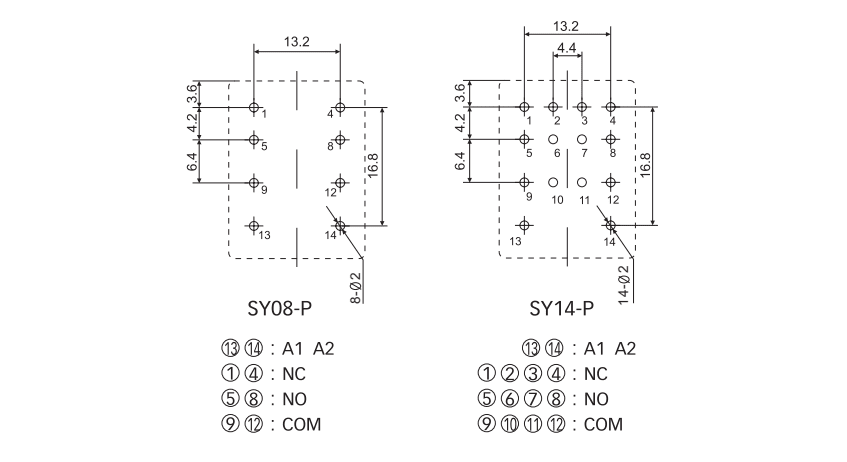

Connection Diagrams
