SKC08-ST & SKC14-ST Socket
Features
SKC08-ST and SKC14-ST are 8-pin and 14-pin sockets, which are compact in size and durable in construction, designed for power relay and utility relay applications. They are made with insulation displacement connector (IDC) terminations, which make them quick and easy to connect. SKC08-ST and SKC14-ST are RoHS compliant.
Request A Quote
Share Our Social
SKC08-ST & SKC14-ST Socket Characteristics
| Type | Unit | SKC08-ST | SKC14-ST | |
| Nominal load | Current | A | 12 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | – | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 80 | 80 | |
Relay, Accessories Selection Table
| Socket | Plastic clip | ID tag | Module | Bus Jumper |
| SKC08-ST |
SK36F |
SK4P |
AMD |
ST01CC |
| SKC14-ST |

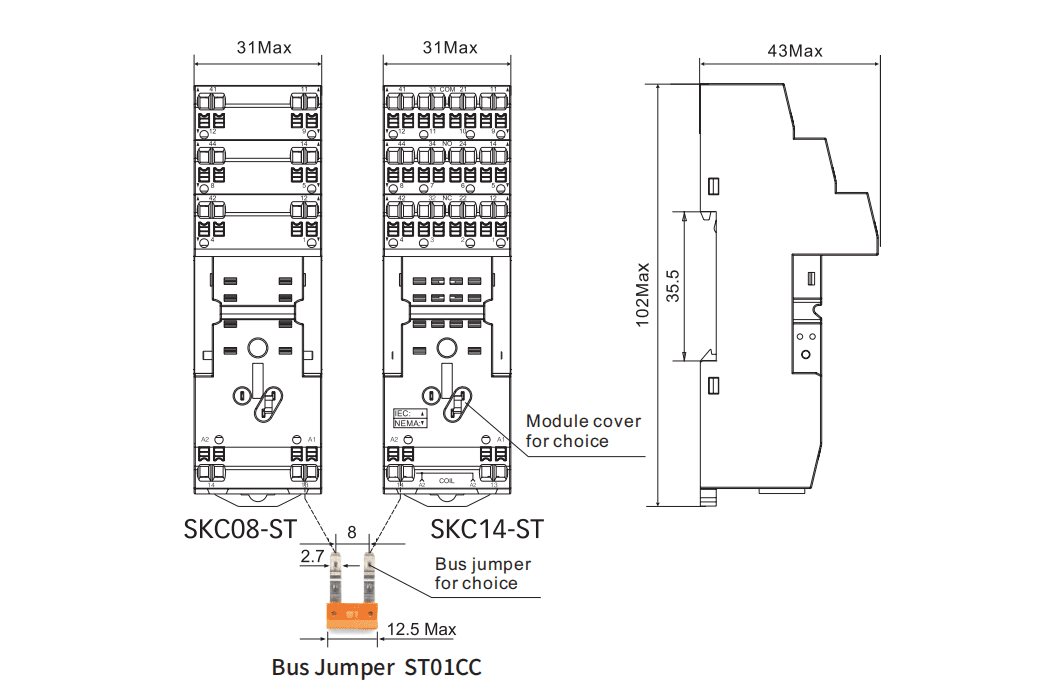

SKC08-ST & SKC14-ST Socket Dimensions (mm)
Connection Diagrams
