SKC08-E S Socket
Features
The SKC08-E S socket is a socket for RKF Magnetic Explosion Power Relays. It provides an 8-pin DIN connector and has screw terminals for power input and output. SKC08-E S sockets are made of thermoplastic and are used to protect circuits from short circuits and overloads, thus ensuring high performance and long service life.
Request A Quote Share Our Social
SKC08-E S Socket Characteristics
| Type | Unit | SKC08-E S | |
| Nominal load | Current | A | 15 |
| Voltage | V | 300 | |
| Dielectric strength | Between coil and contact | V/min | 4000 |
| Between contacts | V/min | 2500 | |
| Max. tightening torque | Nm | – | |
| Wire size | AWG/mm² | 20-14/0.5-2.5 | |
| Ambient temperature | °C | -40~+85 | |
| Unit weight | g | 35 | |
Relay, Accessories Selection Table
| Socket | Plastic clip | Metal clip | ID tag | Module |
| SKC08-E S |  SK36F |  SK36M |  SK4P |  AMD |

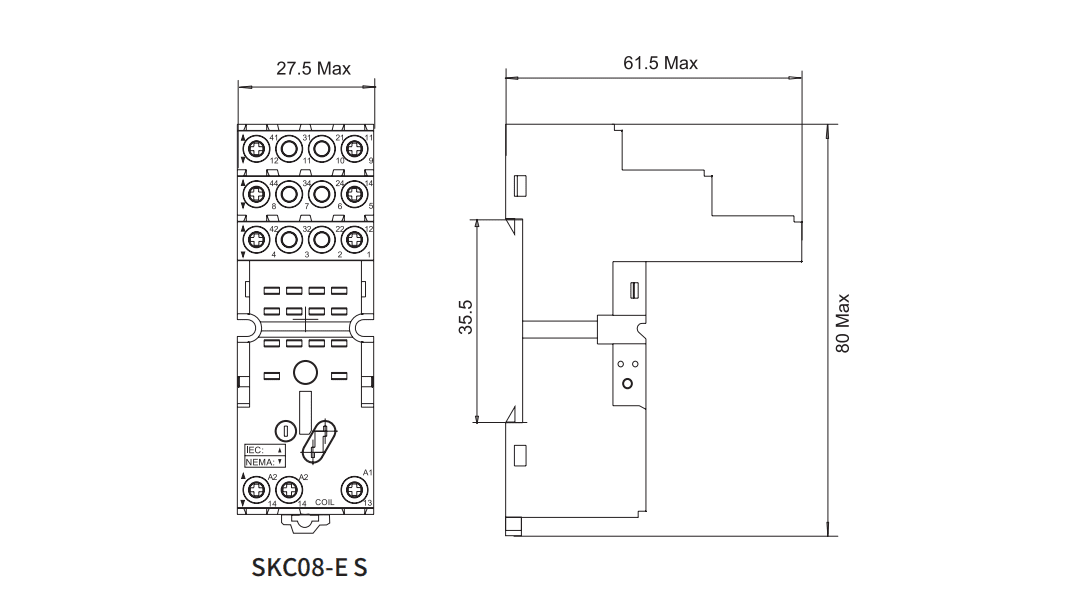

SKC08-E S Socket Dimensions (mm)

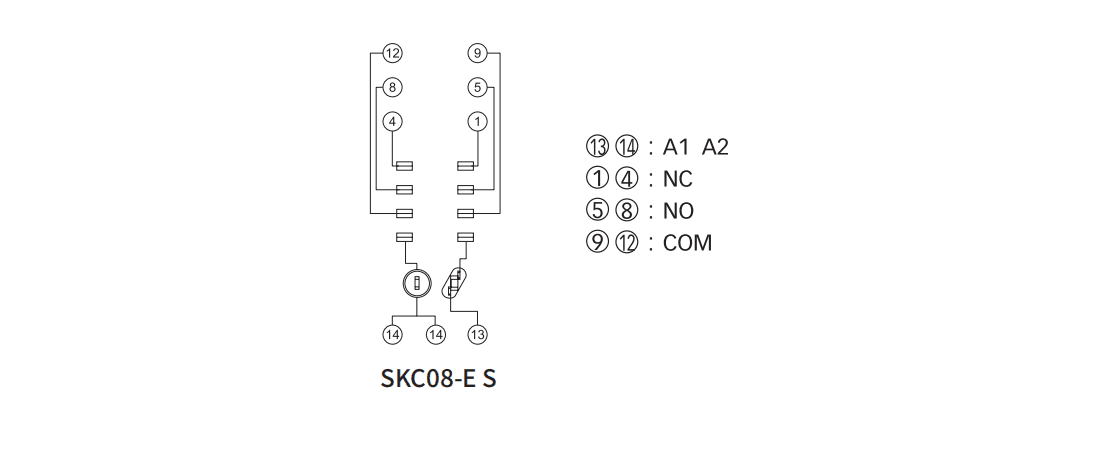

Connection Diagrams
