SYF08A-E S Socket
Features
The SYF08A-E S socket is a power socket designed for use with RKF electromagnetically fused power relays. Sockets allow for a reliable and safe connection between the relay and power supply and provide the user with an easy way to install and operate the relay. This product is a reliable and easy-to-use tool with a long lifespan.
Request A Quote
Share Our Social
SYF08A-E S Socket Characteristics
| Type | Unit | SYF08A-E S | |
| Nominal load | Current | A | 15 |
| Voltage | V | 300 | |
| Dielectric strength | V/min | 2000 | |
| Max. tightening torque | Nm | 1.0 | |
| Wire size | AWG/mm² | 20-14/0.5-2.5 | |
| Ambient temperature | °C | -40~+65 | |
| Unit weight | g | 37 | |
Relay, Accessories Selection Table
| Socket | Metal clip |
| SYF08A-E S |
SY36S |

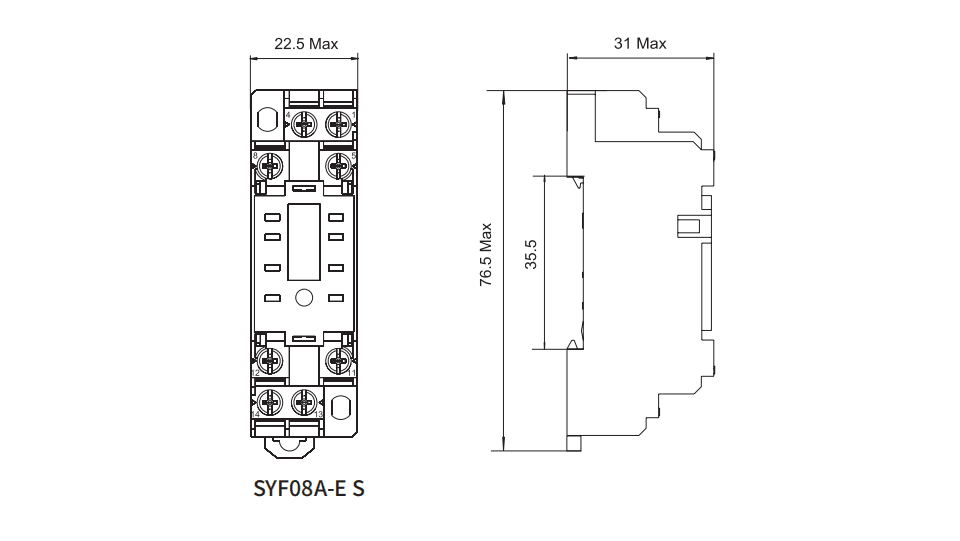

SYF08A-E S Socket Dimensions (mm)

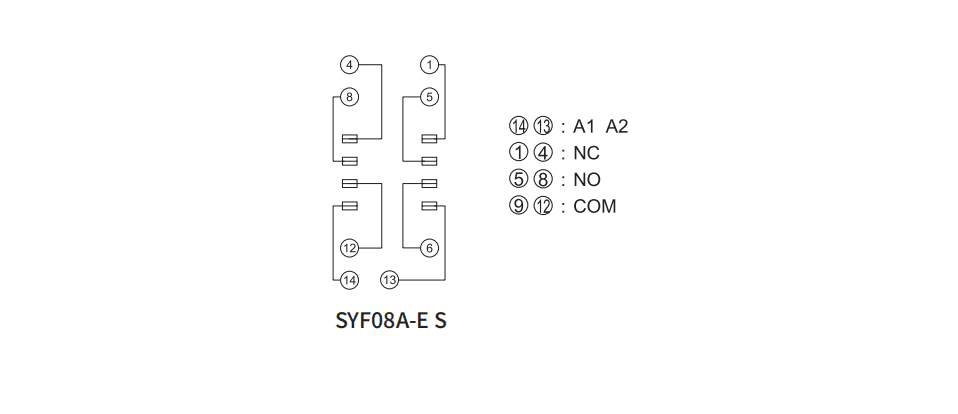

Connection Diagrams
