MRFID Series Connector Module
Features
The MRFID series Connectormodule connects a 10 pin to a basic 64-pin pin socket to a double-layer screw terminal through a circuit board to a module. According to the need to select the needle position, the control center in the electric control cabinet can be conveniently realized; for example, the multipin flat cable connector plug of the I/O interface of the industrial computer and the wire leading to the double-layer terminal of the industrial site are safe, convenient and reliable.
Request A Quote
Share Our Social
Ordering Information：
MRF ID 50 □
Relay Module：MRF
Connector type: ID
IDC interface
Pin: 50
The width of module board: □
W4: 49mm
W8: 88mm
Characteristics:
This product is a modular design of IDC flat cable connector and terminal block. It is modular in design, small in size, space saving, easy to connect, and easy to install. It can be quickly mounted on 35mm U-type, E-type standard industrial rail terminal, module bracket. Adopt brand, the quality is stable and reliable
Module conforms to ROHS
Technical Parameters:
| Connector | |
| Norminal voltage | ≤60V AC/DC |
| Norminal current | 1A |
| Insulation resistance | Above 100MΩ (DC500V) |
| Withstand voltage | AC500V 1min (Leakage current less than 1mA) |
| Ambient tempreture | -40～+55℃(No icing) |
| Terminal | |
| Terminal wiring specification | 0.2～2.5mm²(26～12WG) |
| Stripping length | 6～8mm |

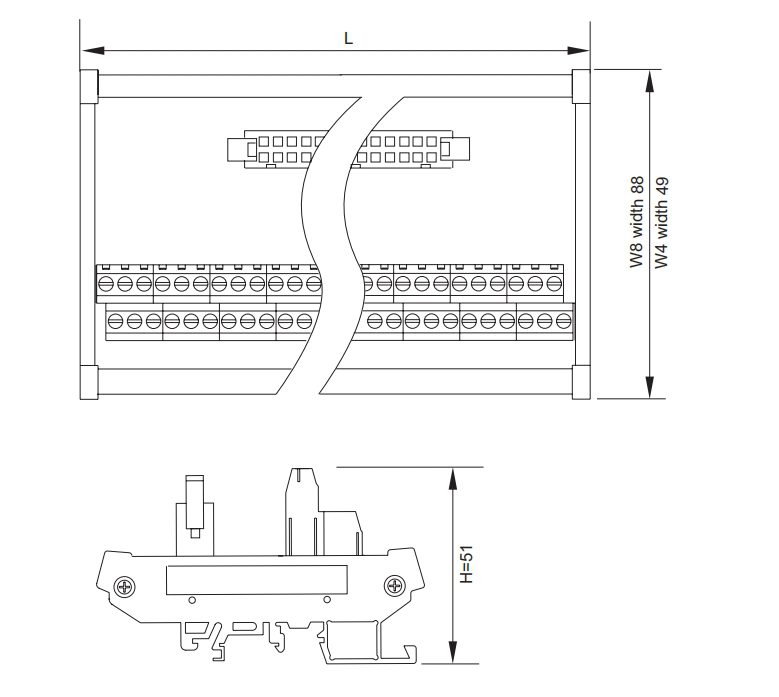

Dimensions:
The length is shown in the table below
| Model specification |
Installation ength L(mm) |
Model specification |
Installation ength L(mm) |
| MRFID10 | 44.5 | MRFID34 | 101 |
| MRFID14 | 56 | MRFID40 | 112 |
| MRFID16 | 56 | MRFID50 | 146.5 |
| MRFID20 | 67.5 | MRFID60 | 168.5 |
| MRFID26 | 78.5 | MRFID64 | 179.5 |
| MRFID30 | 89.5 |

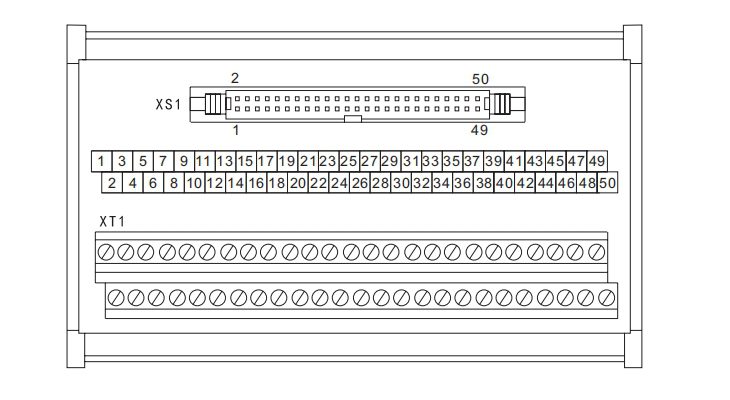

Connector and terminal number arrangement (Take 50digital for instance)

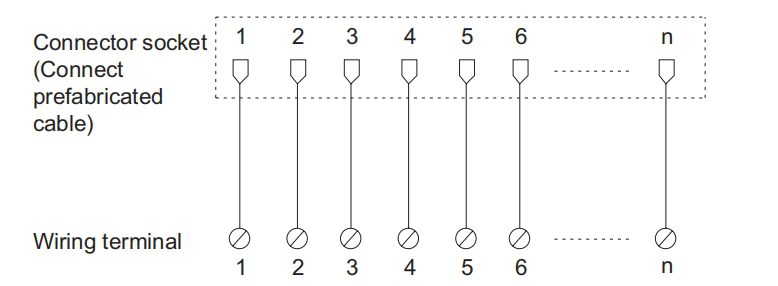

Wiring Diagrams:
10 digital, 14 digital, 16 digital, 20 digital, 26 digital, 30 digital,
34 digital, 40 digital, 50 digital, 60 digital, 64 digital etc., according to customer requirements.
