MRFDS Series Connector Module
Features
The MRFID series Connectormodule connects a 10 pin to a basic 64-pin pin socket to a double-layer screw terminal through a circuit board to a module. According to the need to select the needle position, the control center in the electric control cabinet can be conveniently realized; for example, the multipin flat cable connector plug of the I/O interface of the industrial computer and the wire leading to the double-layer terminal of the industrial site are safe, convenient and reliable.
Request A Quote
Share Our Social
Ordering Information：
MRF DS 50 □ □
Connector module：MRF
Connector type: DS
D – SUB
Pin: 50
Plug: □
M: male plug
F: female plug
The width of module board: □
W4: 49mm
W8: 88mm
Characteristics:
This product is a modular design of D-SUB cable connector and terminal One-to-one connect Correspondingly. It is modular in design, small in size, space saving, easy to connect, and easy to install. It can be quickly mounted on 35mm U-type, E-type standard industrial rail terminal, module bracket. Adopt brand, the quality is stable and reliable
Module conforms to ROHS
Technical Parameters:
| Connector | |
| Norminal voltage | ≤125V AC/DC |
| Norminal current | 1A |
| Insulation resistance | More than 100MΩ (DC500V) |
| Initial breakdown voltage | AC500V 1min (Leakage current less than 1mA) |
| Ambient tempreture | -40～+55℃(No icing) |
| Terminal | |
| Terminal wiring specification | 0.2～2.5mm²(26～12WG) |
| Stripping length | 6～8mm |

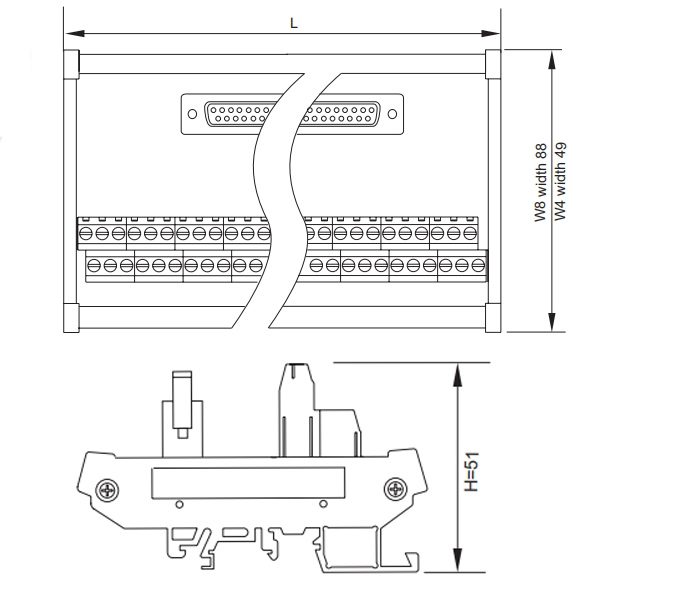

Dimensions:
Length see the table below
| Model specification |
Installation ength L(mm) |
| MRFDS09 | 45 |
| MRFDS15 | 56.5 |
| MRFDS25 | 78.5 |
| MRFDS37 | 112 |
| MRFDS50 | 112 |

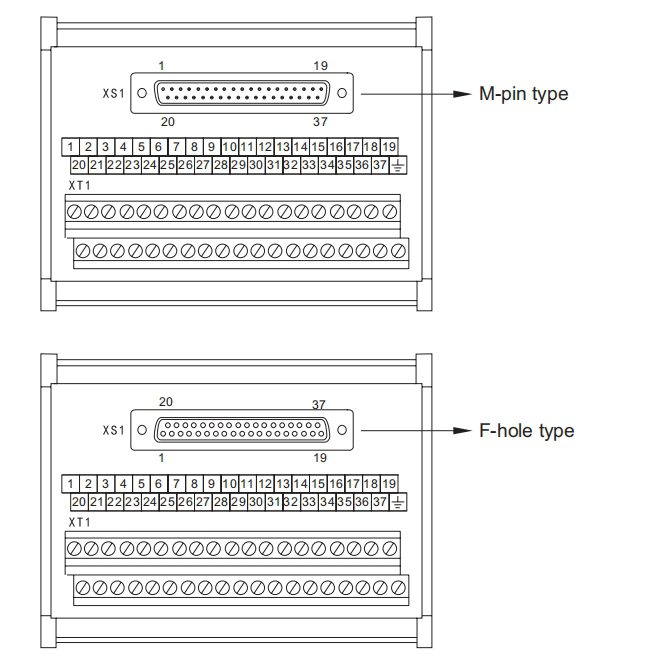

Connector and terminal number arrangement (Take 37digital for instance)
Wiring Diagrams:
9 digital, 15 digital, 25 digital, 37 digital, 50 digital,
62 digita etc., according to customer requirements.
