How do you test a PCB relay?

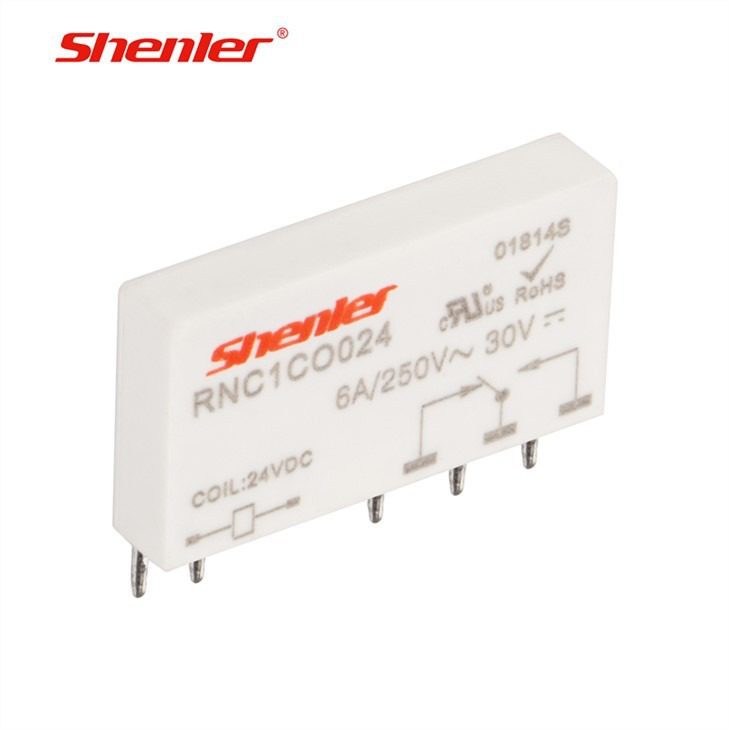

In the design and development of electronic products, the PCB relay plays a crucial role. It is used not only for switching currents but also for circuit protection and signal conversion. However, even high-quality PCB power relays may experience failure due to prolonged use or improper operation. Therefore, testing the PCB relay becomes an essential step in ensuring the reliability and safety of the circuit.

Pre-Testing Preparation

Before conducting any tests on your PCB relay, make sure you have the right tools and equipment and follow safety protocols. This is vital for the accuracy and safety of your tests.

1. Tools and Equipment

Tool/Equipment	Purpose
Multimeter	To measure the voltage, current, and contact resistance.
DC Power Supply	To provide the required voltage to the relay coil.
Test Leads	To connect the testing equipment to the relay.
Oscilloscope (Optional)	To measure the dynamic response of the relay (e.g., switching time).

2. Safety First

When performing tests, it’s important to consider the voltage and current of the circuit. Always ensure the power is disconnected from the relay, and use appropriate protective gear such as insulated gloves to avoid direct contact with high-voltage areas.

Step-by-Step Methods to Test a PCB Relay

1. Visual Inspection

Before proceeding with electrical testing, a thorough visual inspection is essential. This helps identify any visible physical damage, such as burnt circuits, cracks, or loose connections. Check the contacts of the relay for any signs of oxidation or contamination.

2. Static Coil Test

The static coil test ensures that the relay’s coil is not shorted or open. Use a multimeter set to measure resistance to check the relay’s coil resistance. Under normal conditions, the resistance should be within a specific range (depending on the relay specifications). If the resistance is infinite, the coil is open; if it’s too low, it may be shorted.

3. Static Contact Test

Test the relay’s static contacts to ensure they function correctly by using the continuity test function on your multimeter. Connect the multimeter to the relay’s normally open (NO) and common terminals. When the relay is not energized, the result should show as open. When the relay is energized (coil is powered), the result should show as closed.

4. Dynamic Function Test (Powered)

The dynamic function test checks the relay’s performance under actual operating conditions. Connect the relay to the power supply and load circuit, and apply the appropriate voltage to the coil to activate it. Observe the relay’s response, ensuring it switches the circuit on or off as expected. If the relay fails to operate as intended, it may indicate contact issues or a malfunctioning coil.

Troubleshooting Common PCB Relay Issues

When diagnosing PCB relay problems, it’s important to understand the underlying causes and address them systematically. While the table below summarizes the key issues, the following explanations provide additional clarity:

Coil Failures

Possible Cause: Overloading, unstable supply voltage, or coil aging.

Solution: If the coil is open or shorted, the relay should be replaced promptly to avoid circuit malfunction.

Contact Failures

Possible Cause: Oxidation, physical wear, or contamination of relay contacts.

Solution: Clean the contacts if oxidation is minor. For severe damage or pitting, replacing the relay is recommended.

Other Issues

Possible Cause: Electromagnetic interference, overcurrent, or overvoltage conditions.

Solution: Conduct regular inspections and preventive maintenance to minimize the impact of external electrical disturbances.

Problem	Possible Cause	Solution
Coil Failures	Overloading, voltage instability, aging	Replace the relay if the coil is open or shorted.
Contact Failures	Oxidation, wear, or contamination of contacts	Clean the contacts or replace the damaged relay.
Other Issues	Electromagnetic interference, overcurrent, or overvoltage	Regular inspection and maintenance to prevent issues.

Learn More: Precautions for Safe Use of PCB Relays

Choosing the Right PCB Relay for Your Project

Choosing the right PCB relay is crucial as it directly impacts the reliability and safety of your circuit. Different types of PCB relays (such as 5V PCB relays, 12V PCB relays, and miniature PCB relays) are suited for different applications. When selecting, consider the following factors:

Factor	Considerations
Operating Voltage	Ensure the relay’s operating voltage matches your circuit’s requirements.
Load Capacity	Choose a relay that can handle the load current and voltage in your application.
Size and Shape	Select a relay size that fits within your circuit board’s space constraints.

Learn More: How to Select the Right PCB Relay for Your Application?

Conclusion

Testing a PCB relay is a crucial step in ensuring the reliable operation of your circuit system. By using the correct testing methods, you can identify and fix common relay issues, improving the overall quality and stability of your product. Regular maintenance and inspection of relays help extend their lifespan and reduce the risk of failure.

FAQs

Q1: How do I test the coil of a PCB relay?
A1: Use a multimeter to measure the coil’s resistance. If the resistance is normal, the coil is functioning correctly. If the resistance is too high or infinite, the coil is open; if it’s too low, the coil may be shorted.

Q2: What should I do if my PCB relay isn’t functioning correctly?
A2: Check the relay’s coil and contacts for any faults. Perform both static and dynamic tests to verify if the relay is working properly. If a fault is detected, replacing the relay is the most efficient solution.

Q3: How do I select the appropriate PCB relay for my project?
A3: Choose a relay based on your project’s voltage, current load, and available space. Make sure the relay’s specifications align with your circuit requirements.
