A Deep Dive into Relay Module Types

Relay modules are fundamental components in electronics, acting as electrical switches that can be controlled by low-power signals to manage high-power circuits. They are indispensable for projects ranging from simple home automation to complex industrial control systems. Understanding the different types of relay modules is crucial for selecting the right one for your specific needs.

What is a Relay Module?

A relay module is an electronic board that integrates a relay with additional components, such as transistors, diodes, and screw terminals. This design simplifies the process of interfacing a low-voltage microcontroller (like an Arduino or Raspberry Pi) with a high-voltage or high-current load. The core component, the relay, is an electromagnetic switch that uses a small electrical current to energize a coil, creating a magnetic field that pulls a mechanical armature. This armature then moves one or more electrical contacts, either opening or closing a circuit.

Unlike a simple relay, a relay module often includes features that protect the control circuit, provide status indicators (like LEDs), and make connections easier and safer.

Learn More: Understanding Relay Modules

Types of Relay Module Configurations

Relay modules come in a variety of configurations, each suited for different applications. These types are primarily categorized by their pole and throw, channel count, contact type, isolation features, control methods, and operating voltage.

Relay Module by Pole and Throw

The terms “pole” and “throw” describe the number of circuits a relay can control and the number of positions the switch can connect to.

SPST (Single-Pole, Single-Throw) Relay Module

An SPST relay module has one pole and one throw. This means it controls a single circuit and can connect to a single output. It acts like a simple on/off switch. When the coil is energized, the contact closes, completing the circuit. When de-energized, the contact opens. This type is used in basic applications where you only need to turn a single device on or off.

SPDT (Single-Pole, Double-Throw) Relay Module

An SPDT relay module has one pole but two throws. This configuration offers two possible connections: a Normally Open (NO) contact and a Normally Closed (NC) contact. When the relay is de-energized, the pole is connected to the NC contact. When energized, the pole switches to the NO contact. This versatility makes it ideal for applications that require switching between two different circuits or power sources.

DPST (Double-Pole, Single-Throw) Relay Module

A DPST relay module features two poles and one throw per pole. It is essentially two SPST switches that are operated simultaneously by the same coil. This is useful for switching two independent circuits at the same time, such as controlling both the live and neutral wires of an AC circuit for enhanced safety.

DPDT (Double-Pole, Double-Throw) Relay Module

A DPDT relay module has two poles and two throws per pole. This is the most versatile configuration, acting as two simultaneous SPDT switches. It’s often used for reversing the polarity of a DC motor or for complex switching applications where multiple circuits need to be controlled in a coordinated manner.

Relay Module by Channel Count

Relay modules are often sold with multiple relays on a single board, which is convenient for projects requiring control over multiple devices.

• 1-Channel Relay Module: The simplest type, with a single relay.
• 2-Channel Relay Module: Two relays on one board, allowing control of two separate devices.
• 4-Channel Relay Module: Four relays on one board, ideal for controlling a small number of lights or appliances.
• 6-Channel Relay Module: A less common but available option, providing control over six devices.

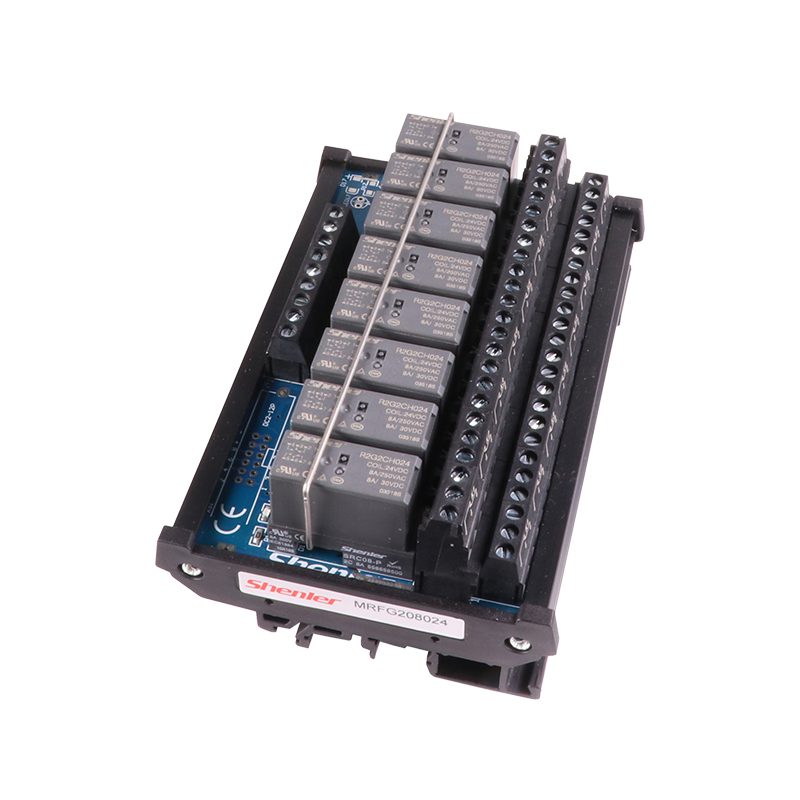

• 8-Channel Relay Module: A popular choice for more extensive home automation systems, offering control of eight devices.
• 16-Channel Relay Module: For large-scale projects, this module provides a high-density solution for controlling up to sixteen devices.

Choosing a multi-channel module can simplify wiring and reduce the overall footprint of your project.

Relay Module by Contact Type

The contact type refers to the default state of the relay’s contacts when the coil is not energized.

• Normally Open (NO) Relay Module: In this type, the contacts are open by default, and the circuit is completed only when the relay is energized. This is the most common type and is used for turning devices on.
• Normally Closed (NC) Relay Module: The contacts are closed by default, and the circuit is broken when the relay is energized. This is useful for safety-critical applications where a device needs to be on by default and turned off only when a specific condition is met (e.g., a fail-safe system).

Relay Module by Isolation and Safety Features

Opto-Isolated Relay Module

An opto-isolated relay module uses an optocoupler (or opto-isolator) to electrically separate the low-voltage control circuit from the high-voltage relay coil circuit. This prevents any voltage spikes or noise from the high-power side from affecting the sensitive microcontroller, offering a critical layer of protection. This is a highly recommended feature for any project involving AC power or sensitive control electronics.

Relay Module by Control Method

Relay modules are typically controlled by a wired signal, but some offer remote capabilities.

Remote Control Relay Module

A remote control relay module includes a receiver (e.g., RF or IR) that allows it to be controlled wirelessly. This is perfect for applications like garage door openers, remote-controlled lights, or other home automation projects where wired control is impractical.

Relay Module by Operating Voltage

Relay modules require a specific voltage to operate their internal components and energize the coil. This voltage is typically supplied by your microcontroller or an external power source.

• 3.3V Relay Module: Common for use with low-power microcontrollers like some ESP32 or ESP8266 boards.
• 5V Relay Module: The most common type, compatible with popular microcontrollers like Arduino and Raspberry Pi.
• 12V Relay Module: Often used in automotive applications or industrial settings where a 12V supply is readily available.
• 24V Relay Module: Standard in industrial automation and PLC (Programmable Logic Controller) systems.

It is crucial to match the relay module’s operating voltage to your power supply to ensure proper functionality and avoid damage.

How to Choose the Right Relay Module

Choosing the right relay module involves considering several factors:

• Load Type: Is your load AC or DC? What is its voltage and current rating? Ensure the relay’s contact ratings exceed your load’s requirements.
• Control Signal: What is the output voltage of your microcontroller (e.g., 3.3V or 5V)? Select a relay module with a compatible trigger voltage.
• Number of Circuits: How many devices do you need to control? Choose a single- or multi-channel module accordingly.
• Switching Logic: Do you need to turn a device on (NO) or off (NC)? Or do you need to switch between two circuits (SPDT)?
• Safety: For high-voltage applications, always prioritize an opto-isolated relay module for enhanced safety.
• Physical Space: Consider the size and form factor of the module to ensure it fits within your project enclosure.

Learn More: 8 Functions of Relay Module in Fire Alarm Systems

Common Applications of Relay Modules

Relay modules are versatile and used in a wide array of applications:

• Home Automation: Controlling lights, fans, and appliances via a smart home hub.
• Industrial Control: Interfacing PLCs with high-power motors, heaters, and solenoids.
• Automotive Projects: Controlling car lights, actuators, and other components.
• Robotics: Switching high-current motors or other components using a low-power microcontroller.
• HVAC Systems: Controlling fans, compressors, and heating elements.

FAQs

What is the difference between a relay and a relay module?

A relay is a standalone electromagnetic switch. A relay module is a circuit board that includes a relay along with supporting components like a control transistor, flyback diode, and screw terminals, making it easier and safer to use with a microcontroller.

Why do relay modules have LEDs?

Most relay modules have LEDs to indicate their status. A power LED confirms the module is receiving power, and a status LED (or LEDs) lights up when the relay coil is energized, showing when the relay is active.

Can I use a DC relay module to switch an AC load?

Yes, as long as the relay’s contact ratings (voltage and current) are specified for AC power and meet or exceed the requirements of your AC load. It’s crucial to check the relay’s datasheet for both AC and DC contact ratings.

What does “Normally Open” (NO) and “Normally Closed” (NC) mean?

“Normally” refers to the relay’s default state when its coil is not energized. NO means the circuit is open (disconnected) by default, and NC means the circuit is closed (connected) by default.

Why is opto-isolation important?

Opto-isolation uses light to transmit a signal, providing a complete electrical separation between the control circuit and the high-power load. This protects the sensitive, low-voltage microcontroller from voltage spikes, noise, and potential damage from the high-voltage side.

Conclusion

Understanding the different types of relay modules—from their pole and throw configurations to their operating voltage and safety features—is essential for any electronics enthusiast or professional. By carefully considering your project’s specific requirements, you can select the perfect relay module to ensure your circuit is not only functional but also safe and reliable.
