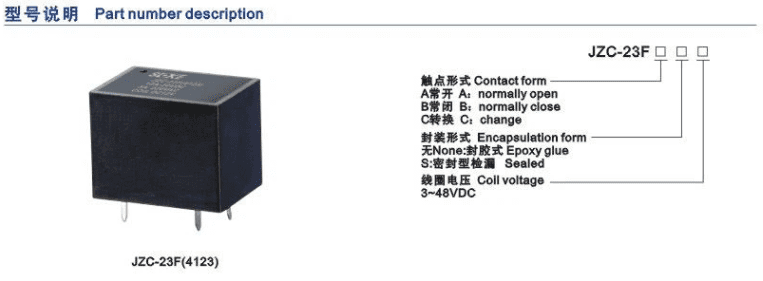

4123 PCB Power Relay
Features
Small size，low power consumption·Application ,motor load.
Request A Quote
Share Our Social
FAQ：
1: What information do you need for a quotation?
A: (Must) Product detail: diameter, color, length, quantity, and logo etc.
2: What’s your product range?
A: We mainly produce all kind of paper straw, selected pattern, color and accredited logo etc.
3: Can you tell me the application area？
A: For machinery, manufacturing, lifting machinery, machine tools, paper making equipment, printing and packaging, elevators, robots, etc.
4: Are my details protected?
A: Absolutley! We care that every privacy has the right to be protected.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Contact | Contact form | 1A 1B 1C | ||
| Rated Load(Ac-1) | 10A/220VAC, 15A/28VDC | |||
| Operating power(Resistive) | 2200VA, 420W | |||
| Contact resistance(Initial) | ≤50mΩ | |||
| Material | Ag alloy | |||
| Electrical life | ≥105 cycles(1800 Ops/h) | |||
| Mechanical life | ≥107 cycles(18000 Ops/h) | |||
| Operate voltage(at 25℃) | ≤75%(rated voltage) | |||
| Release voltage(at 25℃) | ≥10% (rated voltage) | |||
| Max.Allowed voltago(at 25℃) | 110% (Rated voltage) | |||
| Insulation resistance | ≥100MΩ (50OVDC) | |||
| Coll power consumption | DC (W) | 0.36 | ||
| Operate time (at nominal voltage) | ≤10ms | |||
| Release time (at nominal voltage) | ≤5ms | |||
| Dlelectrio Strength | Between contacts | 750VAC/1min (leakage current 1mA) | ||
| Between contacts(different pole) | ||||
| Between contacts and coil | 1500VAC/1min (leakage current 1mA) | |||
| Ambient temperature | -25~+55℃ | |||
| Humidity | 35%~85%RH | |||
| Air pressure | 86~106KPa | |||
| Shock resistance | 10G(half-sine shock pulse: 11ms) | |||
| Vibration resistance | 10~55Hz double-amplitude: 1.5mm | |||
| Install model | PCB terminal | |||
| Weight | Approx.12g | |||
