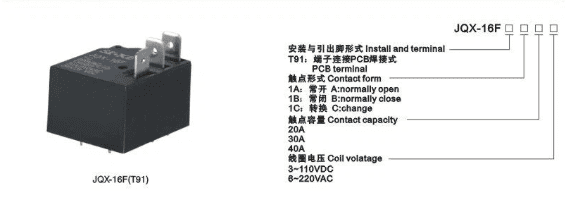

T91 PCB Power Relay
T91 PCB Power Relay

T91 PCB Power Relay

Features

Product features:Small size, high switching capacity,Application heater,motor etc.

certificate Request A Quote

Share Our Social



FAQ:

1: Are you manufacture or trading company?
A: We are manufacture and we invite customer from all over the world come to visit us.

2: Can you make our design customized?
A: We can surely make your design and we can also help you to create new designs.

3: Could I use my logo or design the items?
A: Yes, customized logo and design on mass production are available ,but we need authorization.

4: What is delivery time?
A: Prompt delivery normally for sample orders and 4 weeks for mass production.



Characteristics

Contact Contact form 1A, 1B, 1C            (Specially model)
Rated load (AC-1) 30A/250VAC, 30VDC  |  20A/250VAC, 30VDC |  40A/250VAC, 30VDC
Operating power(Resistive) 7500VA, 900W  |  5000VA, 600W | 10000VA, 12000W
lnitial contact resistance ≤50mΩ
Material Ag alloy

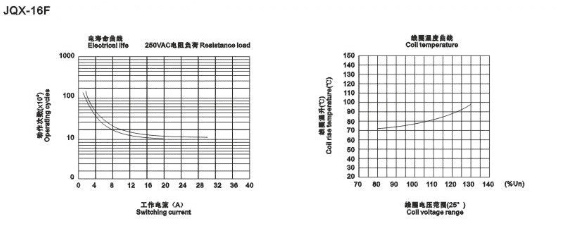

Electrical durability 105cycles(1800 ops/h)
Mechanical durability ≥107 cycles(1800 ops/h)
Operate voltage(at 25℃) DC:≤75%Rated voltage.AC:≤80%Rated voltage
Release voltage(at 25℃) DC:≥10%Rated voltage,AC:≥30%Rated voltage
Max.Allowed voltage(at 25℃) 110% (Rated voltage)
Insulation resistance ≥500MΩ (500VDC)
Coil operating power DC(W) 0.9
AC(VA) 1.2
Operate time (at nominal voltage) ≤15ms
Release time (at nominal voltage) ≤10ms
Dlelectric Strength Between contacts 1500VAC/1min (leakage current 1mA)
Between contacts(different pole)
Between contacts and coil 1500VAC/1min (leakage current 1mA)
Ambient temperature -40~+70℃
Humidity 35%~85%RH
Air pressure 86~106KPa
Shock resistance 10G (half-sine shock pulse: 11ms)
vibration resistance 10~55Hz double-amplitude:1.5mm
Install model PCB terminal
Weight Approx.33g
Like products OMRON:G7G
