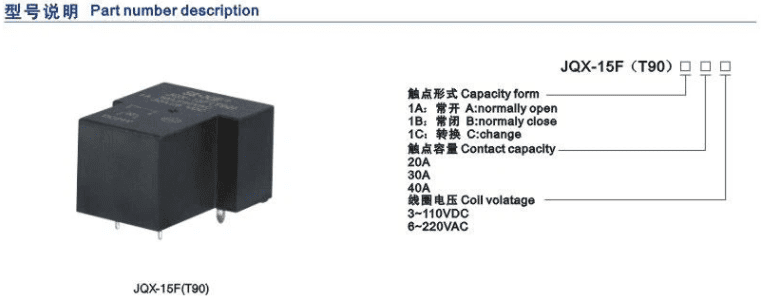

T90 PCB Power Relay
Features
Small size，high power capacity•Application heater，motor etc.
Request A Quote
Share Our Social
FAQ：
1: What the advantage of your products ?
A: We use the first class plastic , and brass to the products , and produce it by the whole automatic machine.
2: How can you make sure your quality ?
A: We are 100% test before ship
3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the free sample but exclude.
4: I wonder if you accept small orders?
A: Please fell free to contact us no matter how many products you want, we will try our best to get the best price for you.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Contact | Contact form | 1A, 1B, 1C | 1A（Routione) | ||
| Rated Load(AC-1) | 30A/250VAC,30VDC | 20A/250VAC,30VDC | 40A/250VAC, 30VDC | ||
| Operating power(Resistive) | 7500VA, 900W | 5000VA, 600W | 10000VA, 1200W | ||
| Contact resistance(Initial) | ≤50mΩ | ||||
| Material | Ag alloy | ||||
| Electrical life | ≥105 cycles(1800 Ops/h) | ||||
| Mechanical life | ≥107 cycles(1800 Ops/h) | ||||
| Operate voltage(at 25℃) | DC:≤75%(rated voltage), AC:≤80%(rated voltage) | ||||
| Release voltage(at 25℃) | DC:≥10% (rated voltage), AC:≤30%(rated voltage) | ||||
| Max.Allowed voltago(at 25℃) | 110% (Rated voltage) | ||||
| Insulation resistance | ≥500MΩ (50OVDC) | ||||

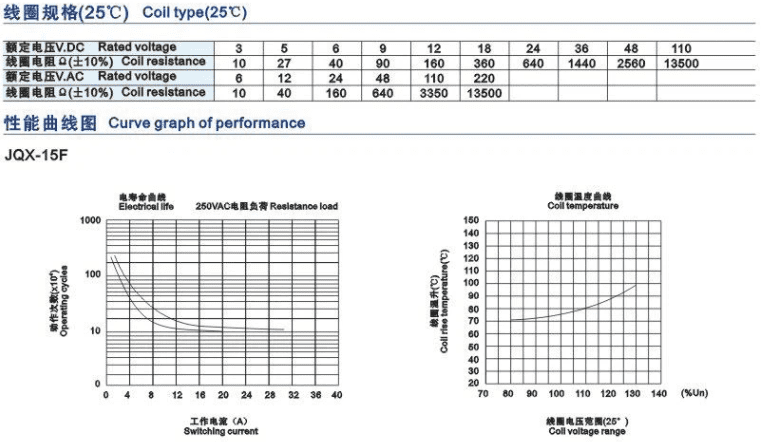

| Coll power consumption | DC (W) | 0.9 | |||
| AC (VA) | 1.2 | ||||
| Operate time (at nominal voltage) | ≤15ms | ||||
| Release time (at nominal voltage) | ≤10ms | ||||
| Dlelectrio Strength | Between contacts | 1500VAC/1min (leakage current 1mA) | |||
| Between contacts(different pole) | |||||
| Between contacts and coil | 1500VAC/1min (leakage current 1mA) | ||||
| Ambient temperature | -40~+70℃ | ||||
| Humidity | 35%~85%RH | ||||
| Air pressure | 86~106KPa | ||||
| Shock resistance | 10G(half-sine shock pulse: 11ms) | ||||
| Vibration resistance | 10~55Hz double-amplitude: 1.5mm | ||||

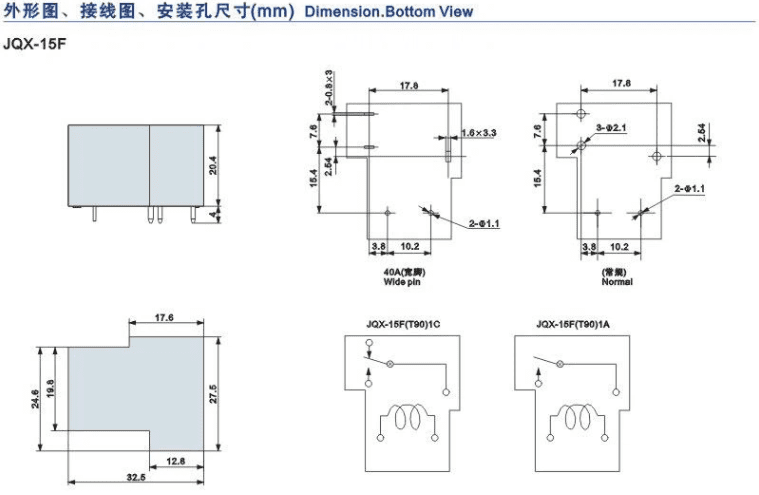

| Install model | PCB terminal | ||||
| Weight | Approx.33g | ||||
| Like products | OMRON:G8P | ||||
