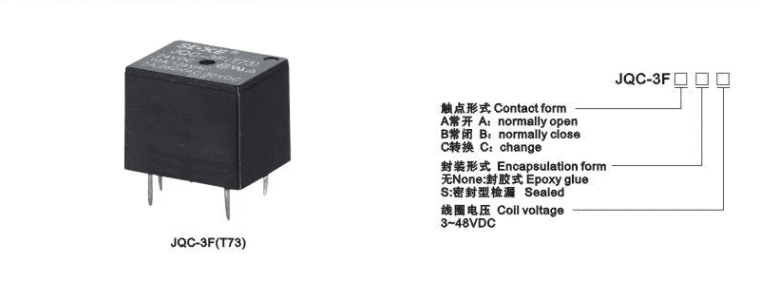

T73 PCB Power Relay
Features
Product features：Small size，low power consumption，high switching capacity，high sensitivity.
Request A Quote
Share Our Social
FAQ：
1: Do you have any testing data on your products?
A: Yes, we have UL and CSA certified laboratories.
2: In what environment can be use for relay ?
A: We have a special relay, is waterproof ,oil-proof , dust-proof, it can be use the bad environment.
3: How long does you take to process my order?
A: As soon as we receive your payment we process your order!
4: Is it possible to get the best price from your company?
A: Our company is manufacturer,so the price is better discount than trading company and other company with same quality.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Contact | Contact form | 1A, 1B, 1C | |
| Rated load (AC-1) | 7A/250VAC,5A/30VDC,10A/125VAC | ||
| Operating power(Resistive) | 1750VA,120W 1250VA | ||
| lnitial contact resistance | ≤50mΩ | ||
| Material | Ag alloy | ||
| Electrical durability | ≥105cycles(1800 ops/h) | ||
| Mechanical durability | ≥107 cycles(1800 ops/h) | ||
| Operate voltage(at 25℃) | ≤75%Rated voltage | ||
| Release voltage(at 25℃) | ≥10%Rated voltage | ||
| Max.Allowed voltage(at 25℃) | 110% (Rated voltage) | ||
| Insulation resistance | ≥100MΩ (500VDC) | ||

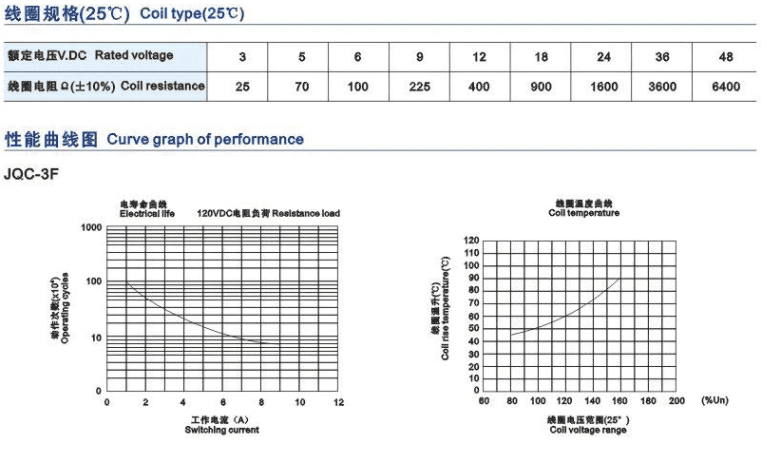

| Coil operating power | DC(W） | 0.36 | |
| Operate time (at nominal voltage) | ≤10ms | ||
| Release time (at nominal voltage) | ≤5ms | ||
| Dlelectric Strength | Between contacts | 750VAC/1min (leakage current 1mA) | |
| Between contacts(different pole) | |||
| Between contacts and coil | 1500VAC/1min (leakage current 1mA) | ||
| Ambient temperature | -25~+55℃ | ||
| Humidity | 35%~85%RH | ||
| Air pressure | 86~106KPa | ||
| Shock resistance | 10G (half-sine shock pulse: 11ms) | ||
| vibration resistance | 10~55Hz double-amplitude:1.5mm | ||

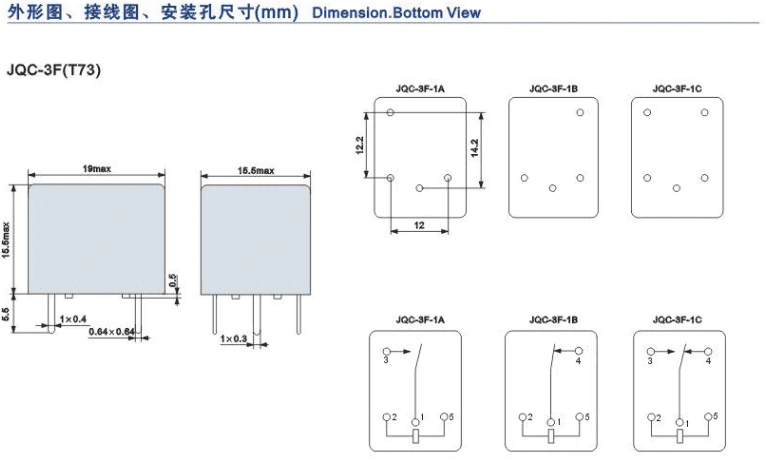

| Install model | PCB terminal | ||
| Weight | Approx.10g | ||
