STB08-E & STB11-E & STB14-E Socket
Features
The STB08-E, STB11-E and STB14-E sockets are designed for use with RKL miniature power relays. These sockets are available in 8-pin, 11-pin and 14-pin configurations and are made of durable plastic. These sockets make connecting and disconnecting relays easy, and they provide reliable connections that can withstand harsh environments.
Request A Quote
Share Our Social
STB08-E & STB11-E & STB14-E Socket Characteristics
| Type | Unit | STB08-E | STB11-E | STB14-E | |
| Nominal load | Current | A | 16 | ||
| Voltage | V | 300 | |||
| Dielectric strength | Between coil and contact | V/min | 4000 | ||
| Between contacts | V/min | 2500 | |||
| Max. tightening torque | Nm | 1.0 | |||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | |||
| Ambient temperature | °C | -40~+85 | |||
| Unit weight | g | 46 | 62 | 78 | |
Relay, Accessories Selection Table
| Socket | Metal clip | Module |
| STB08-E |  SK36M |
AMD |
| STB11-E |  ST36M3C |
|
| STB14-E |  ST36M4C |
 BMD |

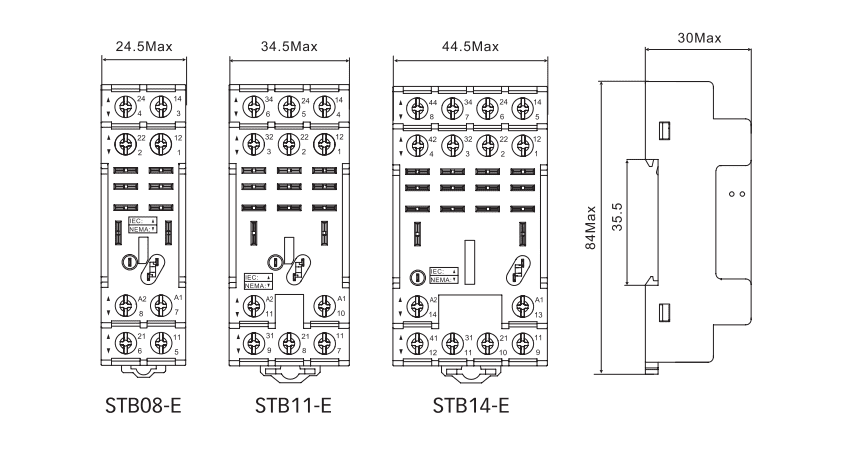

STB08-E & STB11-E & STB14-E Socket Dimensions (mm)

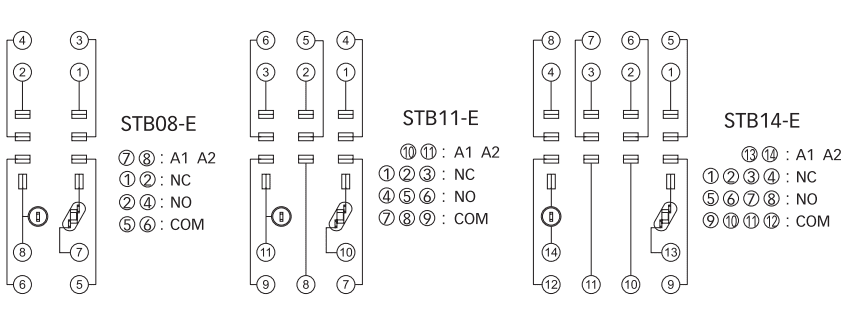

Connection Diagrams
