SNC05-P1 Solid State Slim Relay PCB Socket
Features
SNC05-P1 solid state slim relay PCB socket is specially designed for RSC series solid state slim relay. This socket allows you to easily and quickly install or remove the relay from the PCB. The slim form factor allows this relay to be used in space-constrained applications where conventional relays are not feasible. The SNC05-P1 socket is made of durable and lightweight plastic for easy installation and use.
Request A Quote
Share Our Social
SNC05-P1 Solid State Slim Relay PCB Socket Product Performance
| Type | Unit | SNC05-P1 | |
| Nominal load | Current | A | 6 |
| Voltage | V | 300 | |
| Dielectric strengthInput/output | V/min | 2500 | |
| Ambient temperature | °C | -40~+85 | |
| Unit weight | g | 25 | |

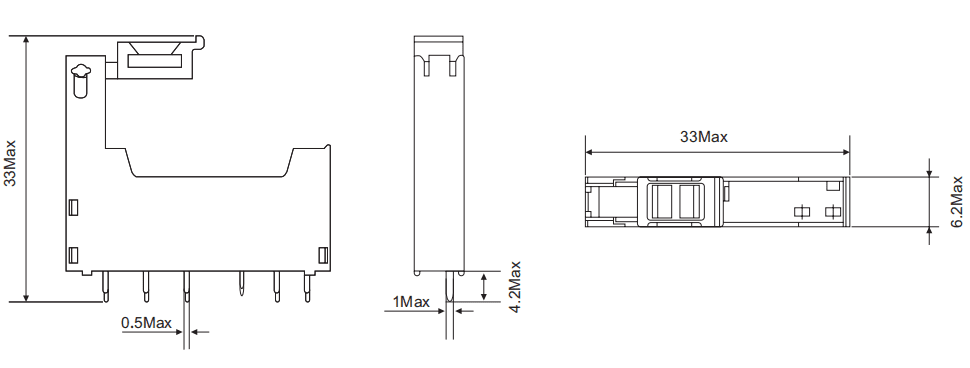

SNC05-P1, Solid State, Slim Relay, PCB Socket Dimensions (mm)

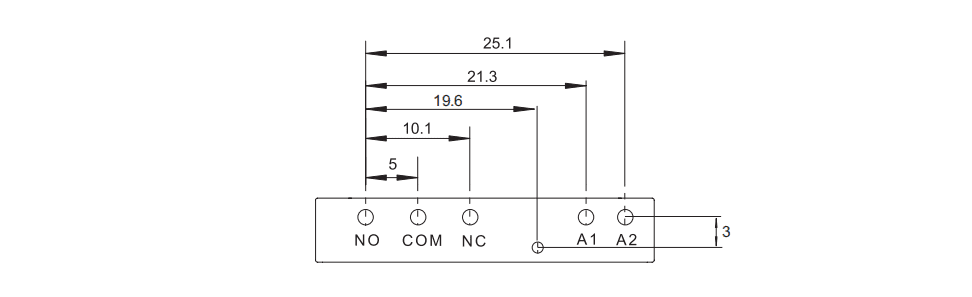

Wiring Diagram

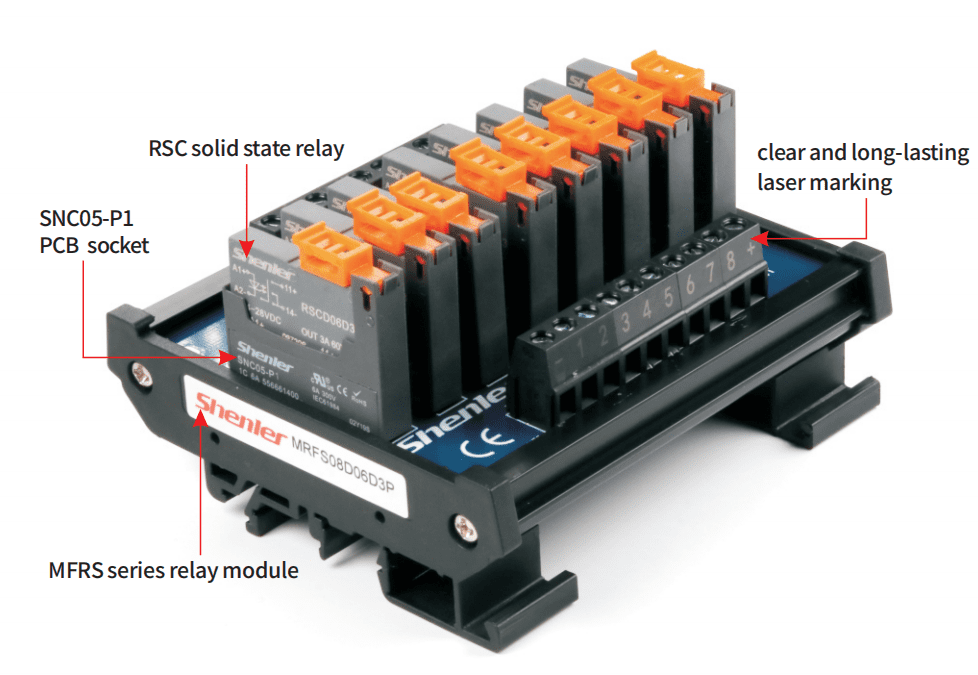

Physical Drawing Of Product Application
