SNC05-P RNC Socket
SNC05-P RNC Socket

SNC05-P RNC Socket

Features

The SNC05-P RNC socket is the perfect solution for connecting PLC relays to a standard 35mm DIN rail. The socket features an easy-to-use clamping mechanism that allows you to quickly and easily mount the relay to the rail. In addition, it has an LED indicator that tells you whether the relay is on or off.

certificate Request A Quote

Share Our Social

SNC05-P PCB Relay Socket For PLC Relay Characteristics

Nominal load Current A 8
Voltage V 300
Dielectric strength Between coil and contact V/S 4000
Between contacts V/S 2500
Wire size AWG/mm² 20-16/0.5-1.5
Ambient temperature °C -40~+85
Unit weight g 25

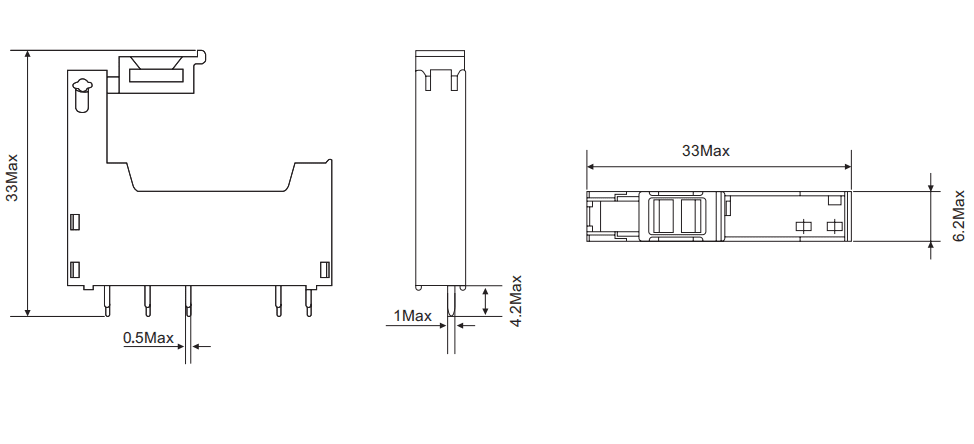

Dimensions (mm)

SNC05-P DIMENSION

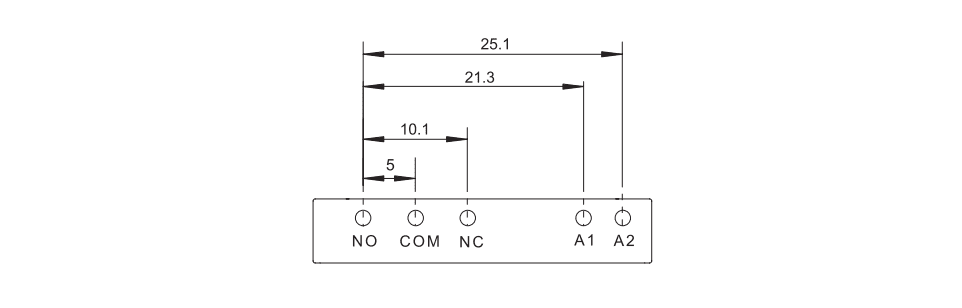

Connection Diagrams

SNC05-P CONNECTION DIAGRAMS
