SNB05-ST RNC Socket
SNB05-ST RNC Socket

SNB05-ST RNC Socket

Features

SNB05-ST RNC Socket is the socket for the RNC interface relay, which is used to provide the interface between the control room and the field. It is constructed of durable metal and plastic and features a secure locking mechanism that helps hold the relay in place. The SNB05-ST is ideal for any application that requires quick and easy access to the relay.

certificate Download Request A Quote

Share Our Social

SNB05-ST RNC Socket For PLC Relay Characteristics

Model No. Input Relay
SNB05-ST-AR 6~24VDC 6~24VDC
SNB05-ST-A 6~24V 6~24VDC
SNB05-ST-B 48V 24VDC
SNB05-ST-C 110V 24VDC
SNB05-ST-D 230V 48VDC
Nominal load Current A 8
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm 0.5
Wire size AWG/mm² 20-16/0.5-1.5
Ambient temperature °C -40~+85
Unit weight g 24

Relay, Accessories Selection Table

Bus jumper

Legend

SN20A

SN20A

SN64P

SN64P

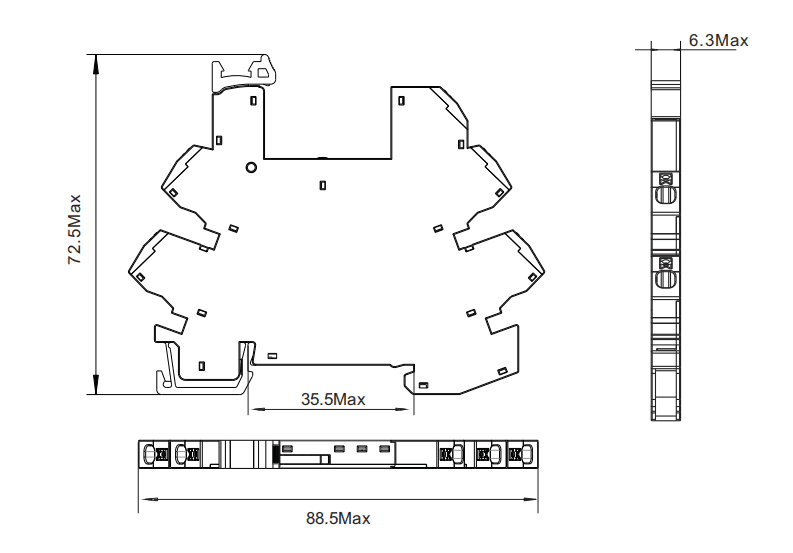

Dimensions (mm)

SNB05-ST D

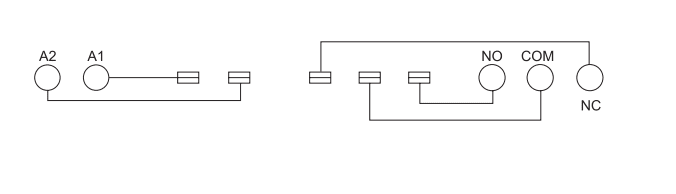

Connection Diagrams

SNB05-ST W
