SNB05-E RNC Socket
SNB05-E RNC Socket

SNB05-E RNC Socket

Features

SNB05-E RNC Socket is a relay socket specially designed for RNC interface relays. Made of durable plastic, it provides a stable platform for the relay to ensure reliable performance. The socket is easy to use and allows for quick and easy replacement or replacement of relays.

certificate Request A Quote

Share Our Social

SNB05-E RNC Socket For PLC Relay Characteristics

Model No. Input Relay
SNB05-E-AR 6~24VDC 6~24VDC
SNB05-E-A 6~24V 6~24VDC
SNB05-E-B 48V 24VDC
SNB05-E-C 110V 24VDC
SNB05-E-D 230V 48VDC
Nominal load Current A 8
Voltage V 300
Dielectric strength Between coil and contact V/min 4000
Between contacts V/min 2500
Max. tightening torque Nm 0.5
Wire size AWG/mm² 20-16/0.5-1.5
Ambient temperature °C -40~+85
Unit weight g 24

Relay, Accessories Selection Table

Bus jumper

Legend

SN20A

   SN20A

SN64P

SN64P

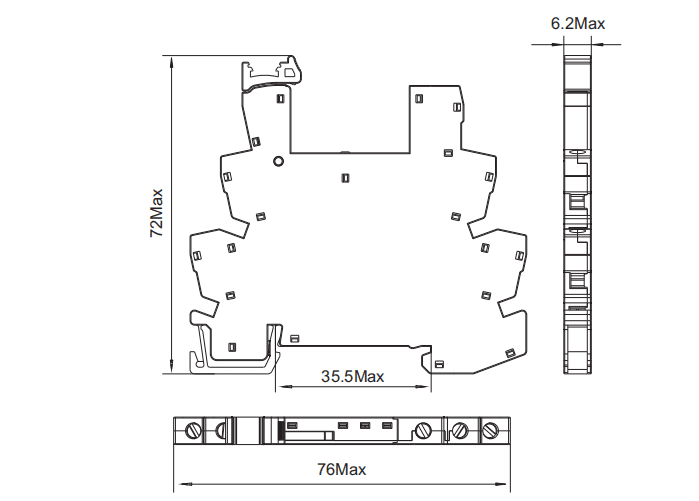

Dimensions (mm)

Dimension

Connection Diagrams

Connection Diagrams
