SKB08-E & SKB14-E Socket
Features
SKB08-E & SKB14-E sockets are heavy duty sockets for mounting power relays. The receptacles are made of durable and heat-resistant plastic for good insulation, long life, and provide wire termination. The SKB08-E and SKB14-E sockets are ideal for a variety of applications including HVAC, motor starters, lighting controls and many other industrial applications.
Request A Quote
Share Our Social
SKB08-E & SKB14-E Socket Characteristics
| Type | Unit | SKB08-E | SKB14-E | |
| Nominal load | Current | A | 12 | 10 |
| Voltage | V | 300 | ||
| Dielectric strength | Between coil and contact | V/min | 4000 | |
| Between contacts | V/min | 2500 | ||
| Max. tightening torque | Nm | 1.0 | ||
| Wire size | AWG/mm² | 20-14/0.5-2.5 | ||
| Ambient temperature | °C | -40~+85 | ||
| Unit weight | g | 50 | 56 | |
Relay, Accessories Selection Table
| Socket | Plastic clip | Metal clip | ID tag | Module |
| SKB08-E |
SK36F |
SK36M |
SK4P |
AMD |
| SKB14-E |
SKB08-E & SKB14-E Socket Dimensions (mm)

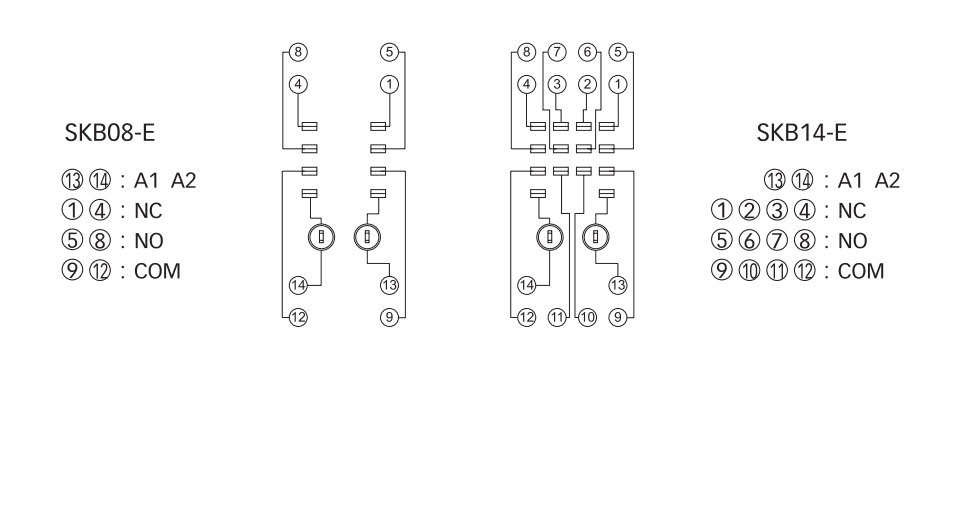

Connection Diagrams
