SEB11-E Socket
Features
The SEB11-E socket is an accessory for use with REH power relays or REH electromagnetic arc extinguishing power relays. The socket allows the user to easily and safely connect and disconnect the relay from the power supply. It also protects the relay from damage by providing a safe place to release any accumulated energy.
Request A Quote
Share Our Social
SEB11-E Socket Characteristics
| Type | Unit | SEB11-E | |
| Nominal load | Current | A | 25 |
| Voltage | V | 500 | |
| Dielectric strength | Between coil and contact | V/min | 4000 |
| Between contacts | V/min | 2500 | |
| Max. tightening torque | Nm | 1.2 | |
| Wire size | AWG/mm² | 20-12/0.5-3.3 | |
| Ambient temperature | °C | -40~+75 | |
| Unit weight | g | 64 | |
Relay, Accessories Selection Table
| Socket | Metal clip | Module |
| STB08-E |  SE52M |
 BMD |

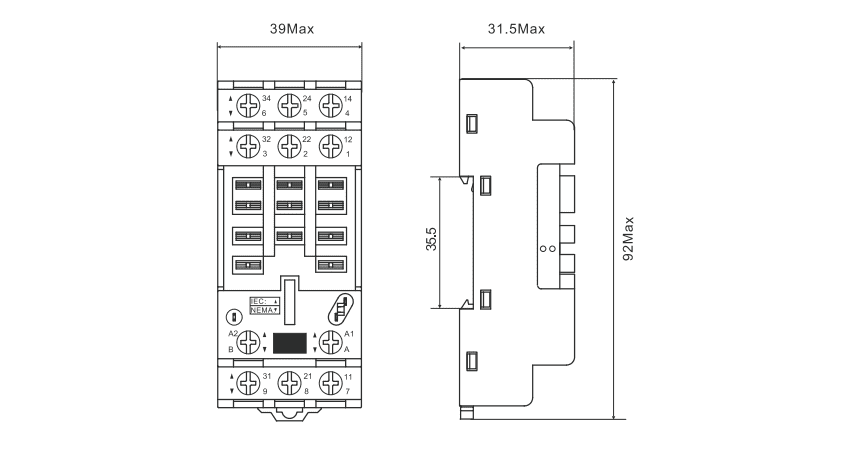

SEB11-E Socket Dimensions (mm)

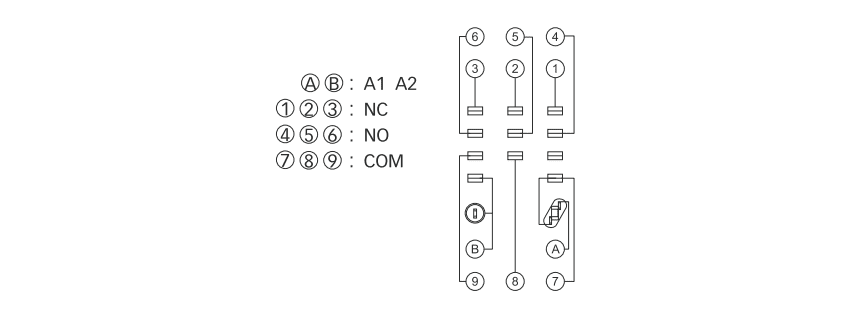

Connection Diagrams
Contact Us
Applicable socket
