RSC Series Solid State Slim Relay

Features

RSC series solid-state ultra-thin relay is a solid-state relay with ultra-thin, small size and fast switching response. No contact, no spark, long service life. It has a MOSFET output for DC and a SCR output for AC. It also has fast switching response times, making it ideal for high-speed applications. The wide supply voltage range makes it suitable for a variety of setups.

Request A Quote

Share Our Social

Product Information

RSC Series Solid State Slim Relay Details

Ultra thin, small size, fast switching response.
With long service life, without contact and spark.
Designed with MOSFET output for DC, and SCR output for AC.
Equipped with imported optocoupler isolation.
Having a wide supply voltage range.

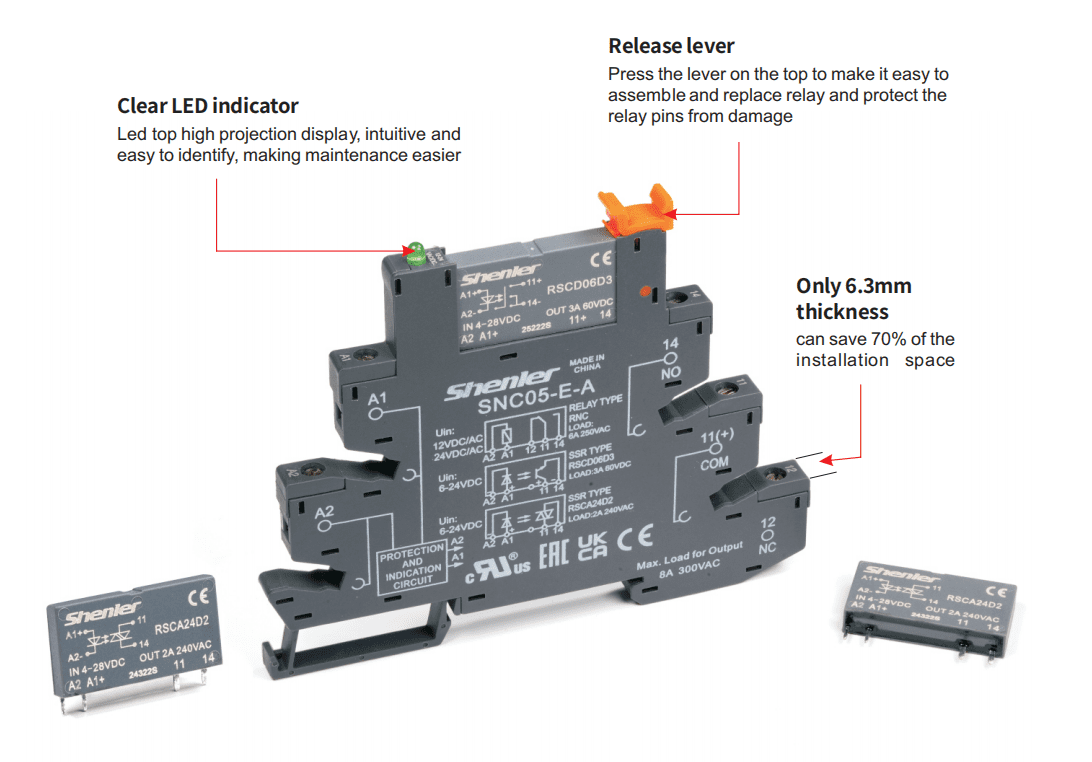

RSC series solid state slim relay consists of a relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: SNC05-E RNC socket and SNC05-P1 solid-state slim relay PCB socket.

Characteristics

Input parameter(Ta=25℃)

Control voltage range	4~28VDC
Must turn-on voltage	4VDC
Must turn-off voltage	1VDC
Control current range	6~20mA

Output parameters(Ta=25℃)

Part No.	RSCD06D3	RSCA24D2
Load voltage range	3~60VDC	24~280VAC
Peak withstand voltage	100VDC	600VAC
Load current range	0.002~3A	0.02~2A
Maximum turn-on time	≤1ms	１／２cycle
Maximum turn-off time	≤1ms	１／２cycle
Non-repetitive surge current (within 10ms)	30A	50A
Maximum off-state leakage current (at rated voltage)	≤0.1mA	≤1.5mA
Maximum on-state voltage drop (at rated current)	≤0.1V	≤1.3V
Load current safety factor	40~60%

Other parameters(Ta=25℃)

Dielectric withstand voltage (Input / Output,50Hz/60Hz)	2500VAC
Insulation resistance(@500VDC)	1000MΩ
Operating temperature range	-30℃~+80℃
Storage temperature range	-30℃~+100℃

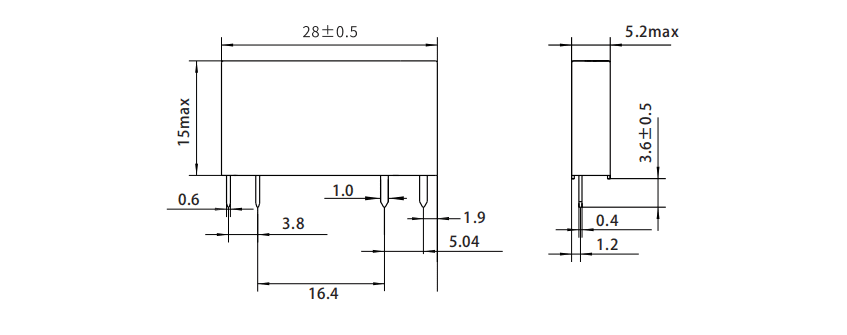

Weight	4g

Note:

When welding and installing the printed substrate, please complete the welding within 8
seconds at 260℃ welding temperature (no more than 2 seconds for each pin).

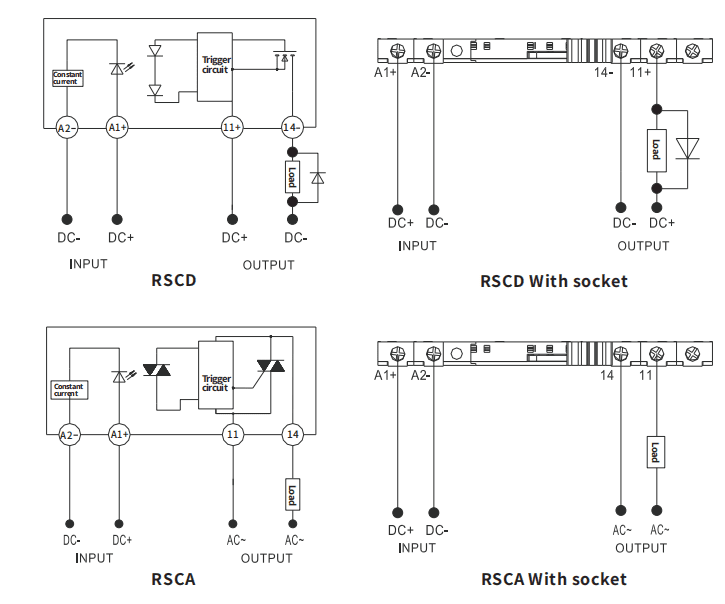

The positive and negative polarity of input and output shall not be connected wrongly,
otherwise, it is easy to damage the product.
The recommended installation torque for base wiring is 0.5N m.

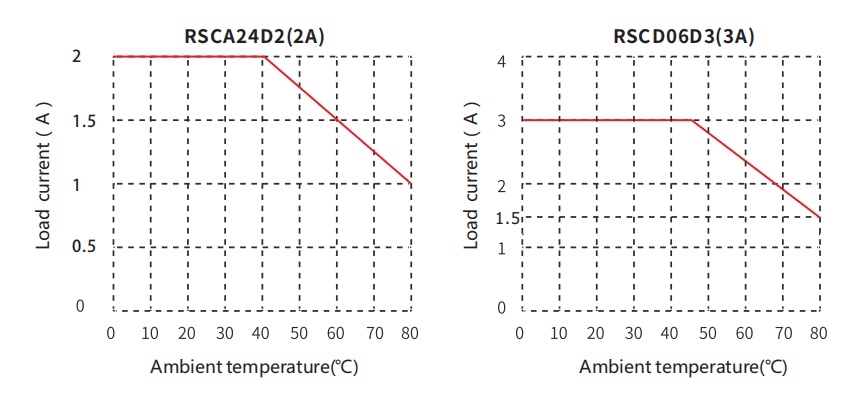

When the ambient temperature of the product is high, please refer to the temperature
curve for derating.
