RNC Interface Relay Module
RNC Interface Relay Module

RNC Interface Relay Module

Features

The RNC interface relay module is ultra-thin, high sensitivity and low power consumption. It can handle 6A load power and meet environmental protection requirements. The control voltage range can be extended with matching sockets. The RNC interface relay module is widely used in the output signal and safety drive of PLC, numerical control system, robot and other control systems.

certificate Download Request A Quote

Share Our Social

RNC Interface Relay Module Details

  • Featured with ultra slim, high sensitivity and low consumption.
  • Maximum load power 6A.
  • Meet environmental requirements.
  • With reasonable structure.
  • Extend the control voltage range by matching sockets.
  • Widely used in PLC, CNC systems, robots, intelligent manufacturing and other control systems.
  • Best choice to realize equipment and automatic assembly line.

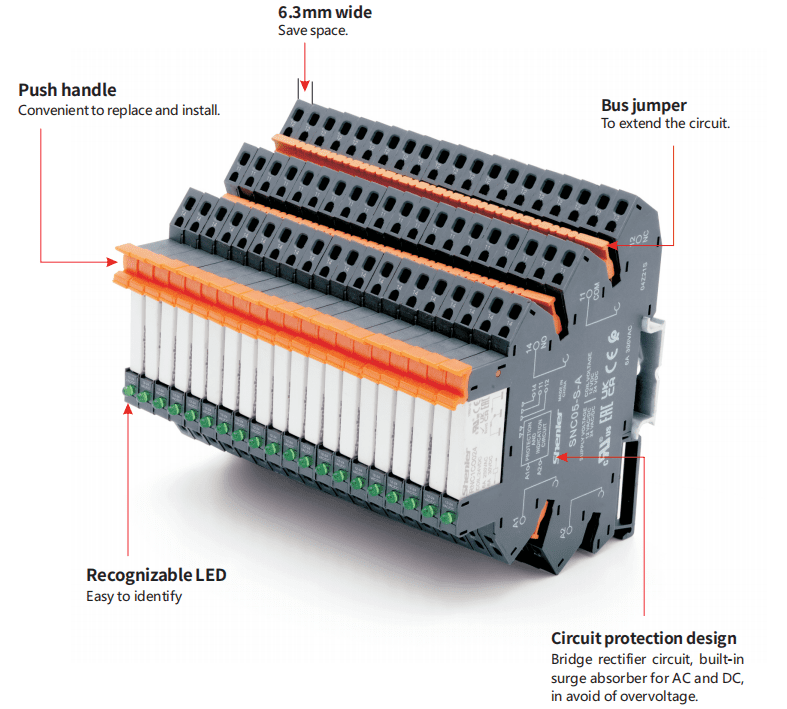

RNC Interface Relay Module Details

RNC PLC relay consists of a relay and socket. The control voltage range can be extended using a matching socket. It can be used with the following types of sockets: SNB05-E RNC socket, SNB05-ST RNC socket, SNC05-E RNC socket, SNC05-S RNC socket, and SNC05-P RNC socket.

Contact Configuration 1A,1C
Load    Resistance 6A/250VAC  30VDC
Max. switching capacity (resistive) 1500VA,180W
Min. switching capacity 170mW(17V/10mA)
Initial contact resistance ≤100mΩ (gold plated contact ≤ 30mΩ)
Material Ag alloy
Electrical durability NO: 6×104Cycles (600 Ops/h);
NC: 3×104Cycles (600 Ops/h)
Mechanical durability ≥2 x 107Cycles (18000 Ops/h)
Pick-up voltage (23℃) (Rated voltage) DC:≤75%
Drop-out voltage (23℃) (Rated voltage) DC:≥5%
Maximum voltage (23℃) (Rated voltage) 110%
Insulation resistance ≥1000MΩ (500VDC)
Coil operating power 3~24 VDC approx. 0.175W
48~60 VDC approx. 0.21W
Operate time (at nominal voltage) ≤8ms
Release time (at nominal voltage) ≤4ms
Initial breakdown voltage Between open contacts 1000VAC/1min (leakage current 1mA)
Between contacts and coil 4000VAC/1min (leakage current 1mA)
Insulation characteristics
IEC 60664
UL840
Rated voltage 250VAC
Pollution level 3
Overvoltage level III
Impulse withstand voltage (waveform: 1.2/50us) 4000V
Protection level IP60
Storage temperature/ humidity -55~+85℃/ ≤85%RH (18 months)
Working temperature/ humidity -40~+85℃/ 5%~85%RH (No condensation) ★
Air pressure 86~106KPa
Shock resistance 10G (half-sine shock pulse: 11ms)
Vibration resistance 10~55Hz double-amplitude:1.0mm
Mounting PCB
Unit weight approx. 6g

★ If the storage exceeds 18 months (calculated from the factory date), it is recommended to re-test theparameters before using.

Coil Specifications (23℃)

Nominal voltage V.DC (0.17W) 5 6 12 24
Coil resistance Ω 147 212 847 3250
Nominal voltage V.DC (0.21W) 48 60
Coil resistance Ω 10971 17143
Remark: Coil resistance: under coil voltage 110V are measured with tolerance of ±10%Ω, above 110V with tolerance of ±15%Ω.

Contact Specification

Contact Specification

RNC Interface Relay Module

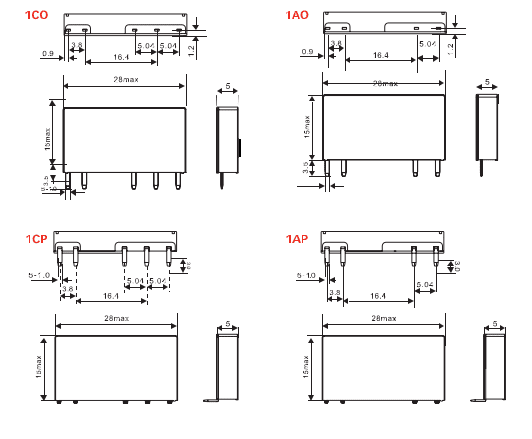

Dimensions (mm)

Dimensions (mm)

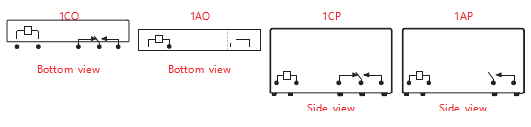

Wiring Diagrams

Wiring Diagrams
