How to Select the Right PCB Relay for Your Application?

News | Sep 16,2022

With PCB relays, there are many factors to consider when choosing the right relay for your application. In this blog post, we’ll outline the different types of PCB relays and how to choose the right one for your needs.

What is a PCB relay?

A relay is an electrically operated switch that can be used to control a variety of devices and systems. A PCB relay is a type of relay that is designed to be used on a printed circuit board. PCB relays are typically used in devices that require a high degree of reliability and durability, such as automotive and industrial applications.

PCB relays are available in a wide range of sizes and configurations to meet the needs of different applications. For example, some PCB relays come with built-in LED indicators that show the status of the relay, while others have special features that allow them to be used in high-temperature or corrosive environments.

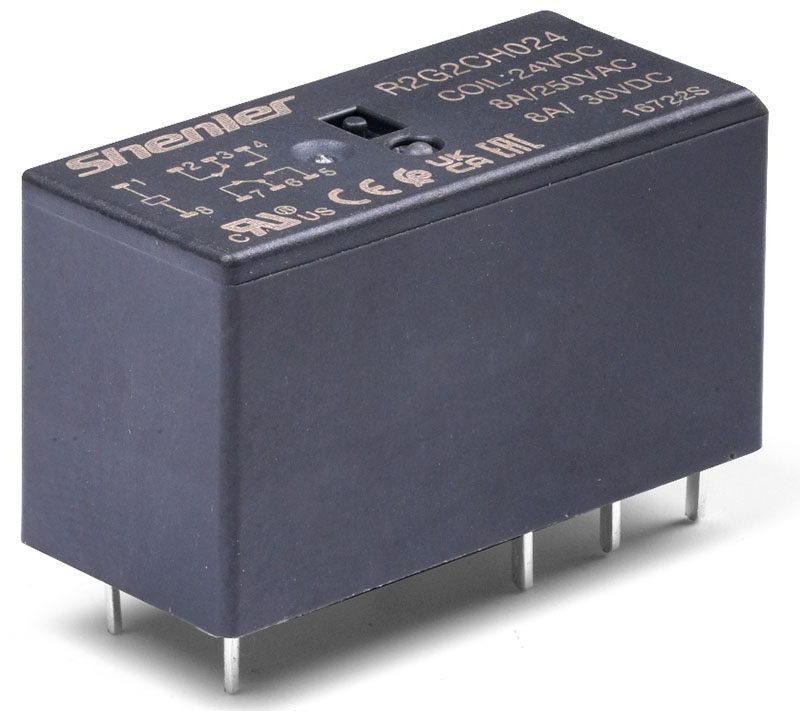

How to Select the Right PCB Relay for Your Application

Types of PCB Relays

PCB relays are fascinating components with a wide range of applications. There are many different types of PCB relays, each with their own advantages and disadvantages. In this article, we will explore the different types of PCB relays.

A printed circuit board (PCB) relay is a type of electromagnetic switch used to control electrical circuits. They are typically used in equipment that requires a high degree of reliability and safety, such as aircraft and medical equipment. PCB relays are mainly divided into three types, A type, B type and C type.

Type A PCB relays are the most common type of relays. They are typically used to switch low-voltage DC signals and have a life expectancy of about 10,000 cycles. Type B PCB relays are similar to Type A relays, but they can also be used to switch AC signals. Form C PCB relays are the most versatile relay type and can be used to switch both DC and AC signals.

Whatever your application, there is a PCB relay to meet your needs. If you have any questions about the product, please contact us via [email protected].

Types of PCB Relays

The benefits of using a PCB relay

A PCB relay is a type of relay that is used to control electrical circuits. It is often used in applications where space is limited, such as in automotive applications. PCB relays offer a number of advantages over other types of relays, including a lower profile, higher durability, and a longer lifespan.

PCB relays are also easier to install and require less maintenance than other types of relays. If you are looking for a reliable and efficient way to control an electrical circuit, a PCB relay may be the right choice for you.

How to select the right PCB relay for your application?

When it comes to choosing the right PCB relay for your application, there are a few factors to consider. The first is the voltage and current rating of the relay. This will determine how much power the relay can handle. The second is coil resistance. This will determine how much current is required to operate the relay. The third is the contact material. This will determine the durability and longevity of the relay.

Once you have considered all of these factors, you can narrow down your choices and select the PCB relay that best meets your needs.

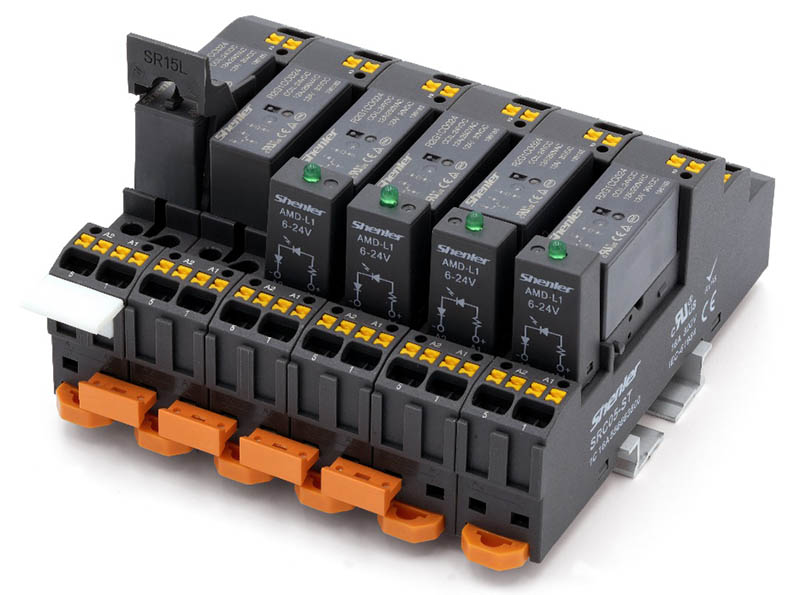

The benefits of using a PCB relay

Summary

There are many factors to consider when choosing the right PCB relay for your application. The most important factors are the voltage and current required for your application. Other factors include the size of the PCB, operating temperature, contact material, and the number of contacts. By considering all of these factors, you can be sure of choosing the right PCB relay for your application.
