How To Choose The Right Relay Sockets For Your Application?

News | Nov 11,2022

Relay sockets are an essential part of any electrical system. They provide isolation between the high voltage of the load and the low voltage of the control system. This allows the relay to operate without the need for high voltage in the control system.

Relay sockets come in many shapes and sizes, and it is important to choose the right socket for your application. The most important factors to consider when choosing a relay socket are the socket’s voltage and current rating, and the number of poles and contacts.

Other factors may also need to be considered, such as environmental conditions, load type, and relay size. By the end of this article, you should have a good idea of which relay sockets are right for you.

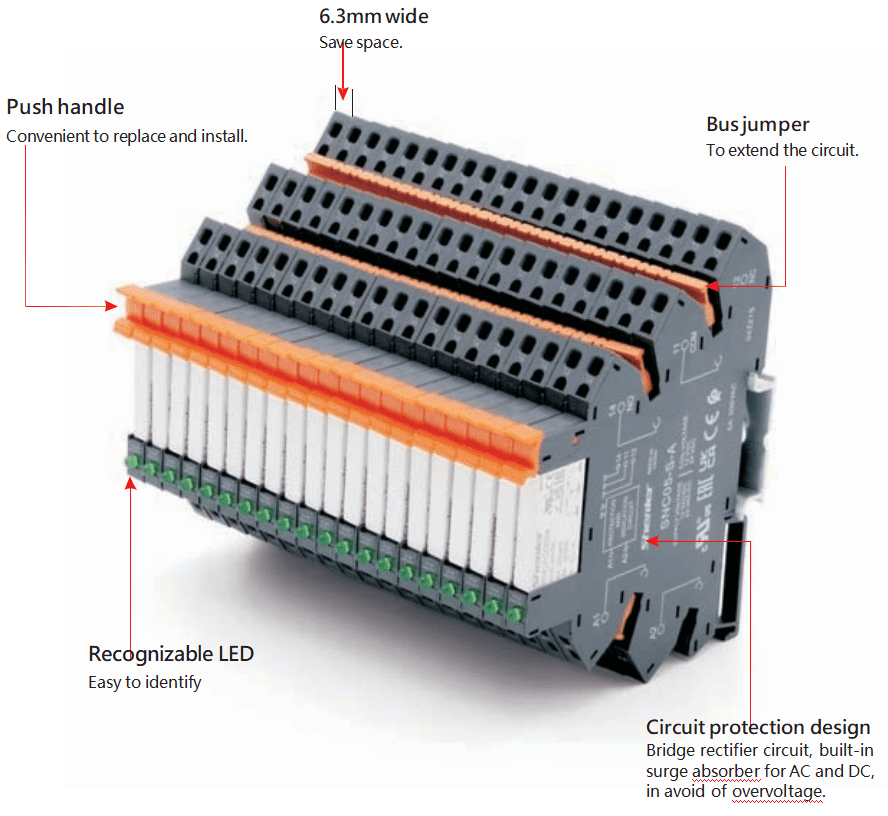

What is a Relay Socket

What is a Relay Socket?

A relay socket is a power socket used to control circuits using relays. A relay is an electrical switch that can be activated with a small current, making it ideal for controlling large currents. When the relay is activated, it will open or close the circuit, depending on the type of relay.

Relay sockets are often used in automotive applications because they can be used to control lights, fans, and other devices. They can also be used in industrial applications such as controlling motors and pumps. Regardless of the application, relay sockets provide a convenient way to control a circuit using a small amount of current.

Types of relay sockets

There are many different types of relay sockets, each with their unique features and benefits. Here, we’ll discuss the three most common types of relay sockets: DIN rail mount, panel mount, and PCB mount.

DIN rail mount relay sockets are the most commonly used type of relay socket. They are easy to install and provide a safe connection to your relays. DIN rail mount relay sockets are available in a variety of sizes to accommodate different relay types.

Panel mount relay sockets are another popular option. They mount directly to the panel and are ideal for applications where space is limited. Panel mount relay sockets are available in a variety of sizes and finishes to match your panel.

PCB mount relay sockets are a third option for mounting relays. They provide a secure connection and are easy to install. PCB mount relays are sockets used to mount relays on a PCB. PCB mount relays can be through hole or surface mount.

The leads of through-hole PCB mount relays are inserted into holes on the PCB, while the legs of surface mount PCB mount relays are soldered to the surface of the PCB.

PCB mount relays are used in a variety of electronic devices and circuits. They are typically used to control high voltage or high current circuits with low voltage or low current signals. For example, a PCB-mounted relay can be used to control a 120V AC circuit with a 5V DC signal.

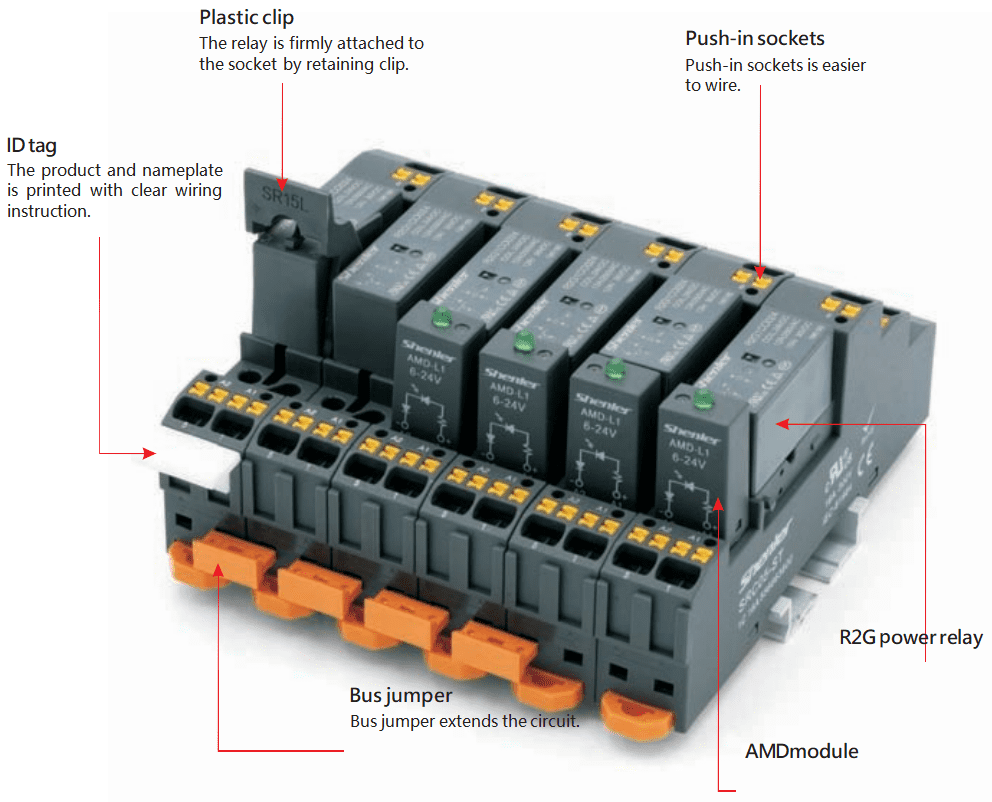

How to choose the right relay sockets for your application

Material considerations for relay sockets

When choosing a relay socket, there are some material considerations to keep in mind. The first is the contact material. The contact material will determine the voltage and current rating of the socket. The second is insulating materials.

The insulating material will determine the dielectric strength of the socket. The third is the installation material. The mounting material will determine the mechanical strength of the socket.

How to choose the right relay sockets for your application?

There are several factors to consider when choosing a relay socket for your application. The most important factors are the voltage and current ratings of the relay. The voltage rating must be greater than the maximum voltage that will be applied to the relay, and the current rating must be greater than the maximum current that will flow through the relay.

You also need to consider the number of poles and contacts of the relay. The number of poles determines how many circuits the relay can control, and the number of contacts determines how many times the relay can be activated. Other considerations include switch location, mounting style, and terminal style.

Conclusion

There are many factors to consider when choosing the correct relay socket for your application. The most important factors include pin count, required voltage and current, contact material, mounting method, and environmental conditions.

Once you have determined the specifications required for your application, you can narrow down your options and choose the appropriate relay socket for your needs.
