KSR-1 Series, Single Phase, Heat Sink
Features
The KSR-1 Series Single Phase Heat Sink is designed for use with the RSD-1D Series DC Solid State Relays. It is a small, easy to install and economical solid state relay cooling solution. The KSR-1 series is also RoHS compliant.
Request A Quote
Share Our Social
Selection Of Heat Sink
Select the heat sink corresponding to thermal resistance according to“Performance curve” of solid-state relay to see the current temperature curve of solid-state relay. The smaller the thermal resistance value, the better the heat dissipation effect.

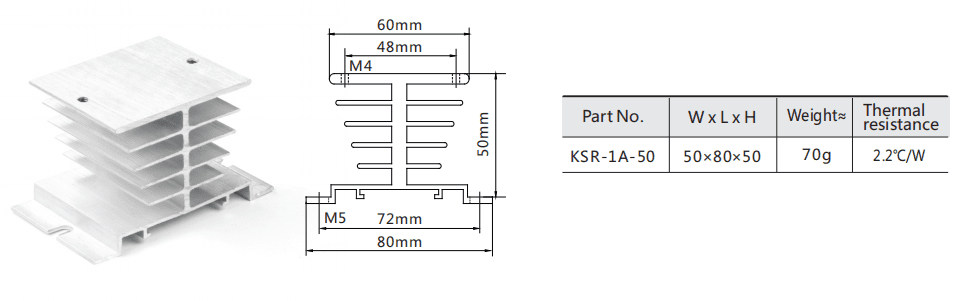

KSR-1A-50 Heat Sink

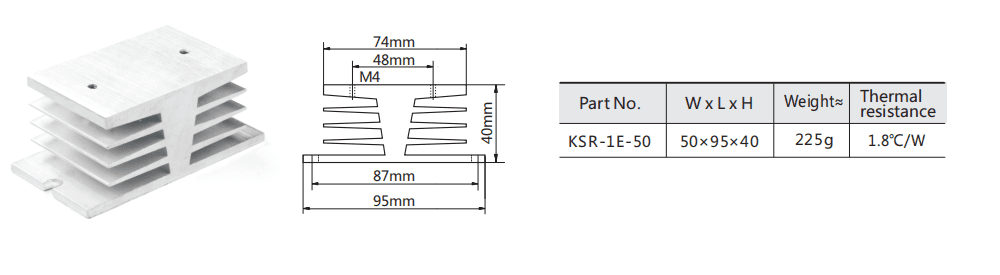

KSR-1E-50 Heat Sink

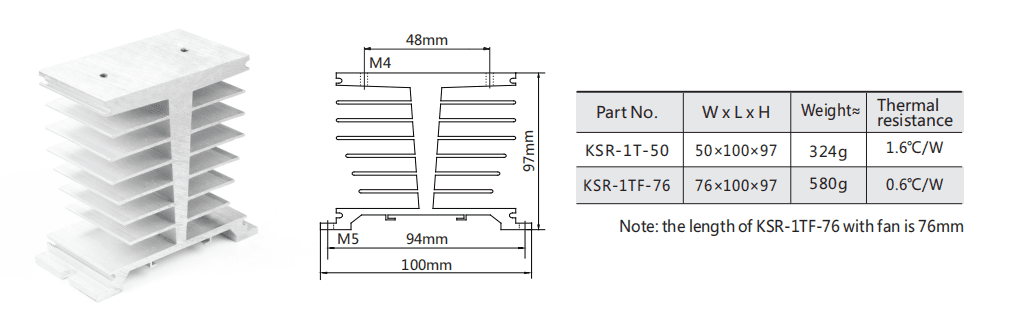

KSR-1T-50 & KSR-1TF-76 Heat Sink

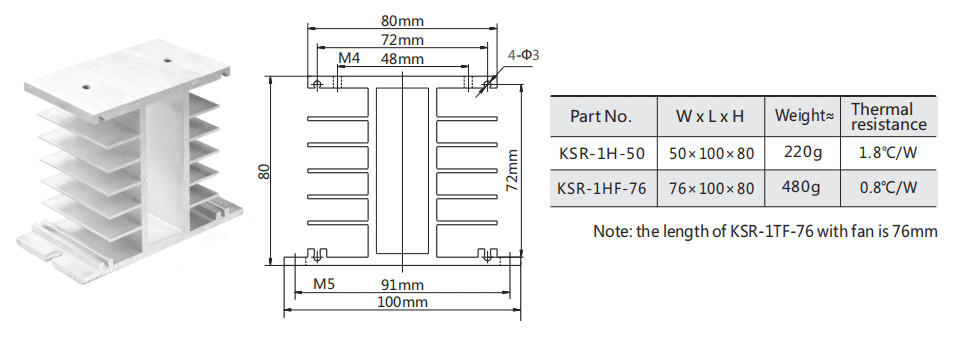

KSR-1H-50 & KSR-1HF-76 Heat Sink

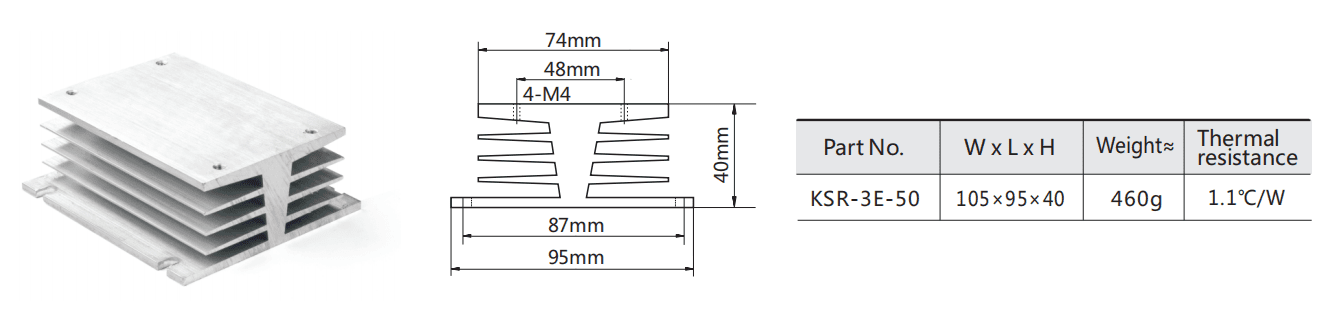

KSR-3E-50 Heat Sink

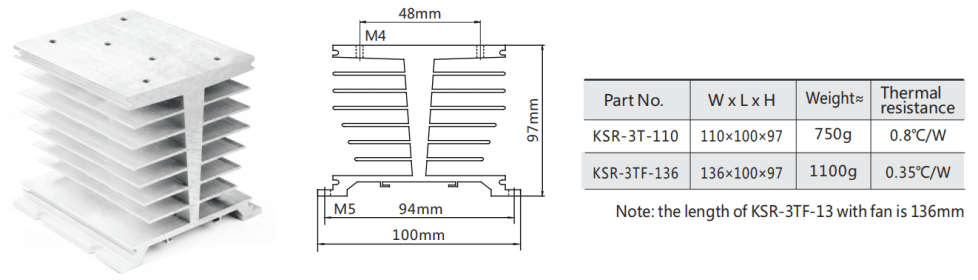

KSR-3T-110 &KSR-3TF-136 Heat Sink

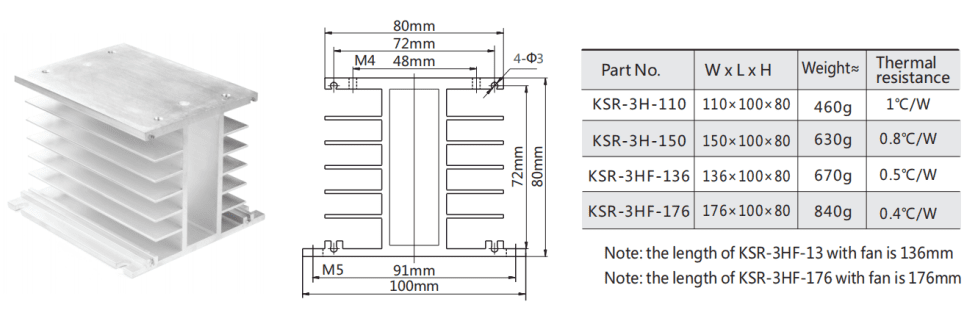

KSR-3H-110 & KSR-3H-150 & KSR-3HF-136 & KSR-3HF-176 Heat Sink

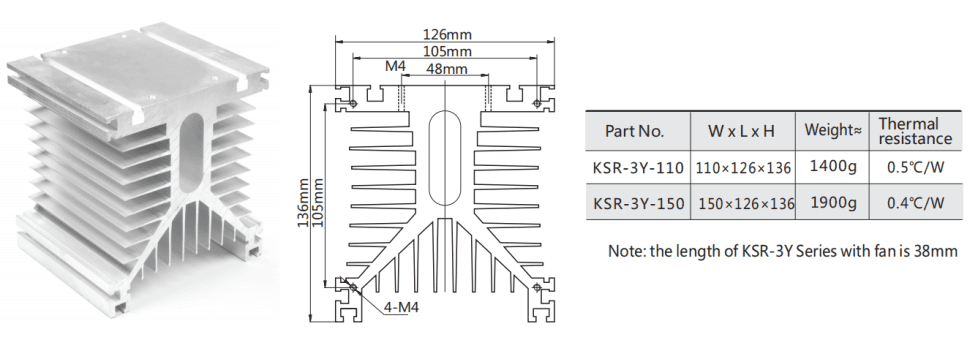

KSR-3Y-110 & KSR-3Y-150 Heat Sink
Contact Us
Applicable socket
