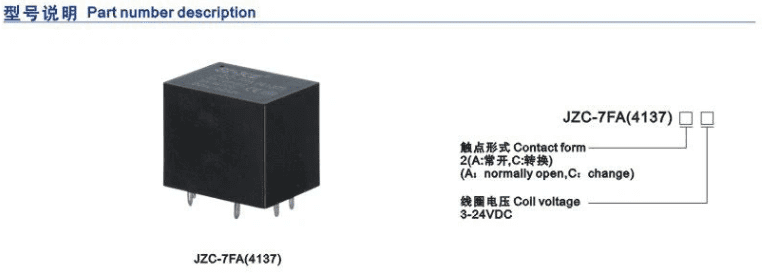

4137 PCB Power Relay
Features
Small size，low power consumption， high sensitivity.
Request A Quote
Share Our Social
FAQ：
1: If have quality issue, how can I do it ?
A: First sent the damaged samples back to me , we will asked the technical person to analysis ,make sure to avoid of the same problem in nest time.
2: What products do you offer?
A: The whole series is on the catalogue , you can select from it.
3: How to guarantee the delivery time on time?
A: If we are unable to deliver on time within the contract, we can pay different percentages of liquidated damages according to different default time.
4: Do the material apply ROSH?
A: Yes, we can provide ROSH AND REARCH report to you.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Contact | Contact form | 2A 2C | ||
| Rated Load(Ac-1) | 2A/120VA, 24VDC | |||
| Operating power(Resistive) | 240VA, 48W | |||
| Contact resistance(Initial) | ≤100mΩ | |||
| Material | Ag alloy | |||
| Electrical life | 1 × 105 cycles(1800 Ops/h) | |||
| Mechanical life | 1 × 107 cycles(1800 Ops/h) | |||
| Operate voltage(at 25℃) | ≤70%(rated voltage) | |||
| Release voltage(at 25℃) | ≥10% (rated voltage) | |||
| Max.Allowed voltago(at 25℃) | 110% (Rated voltage) | |||
| Insulation resistance | ≥100MΩ (50OVDC) | |||

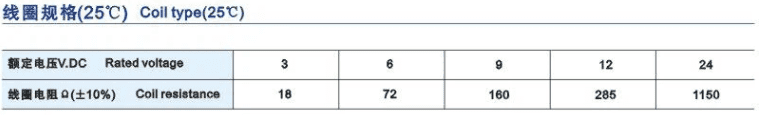

| Coll power consumption | DC (W) | 0.5 | ||
| Operate time (at nominal voltage) | ≤10ms | |||
| Release time (at nominal voltage) | ≤5ms | |||
| Dlelectrio Strength | Between contacts | 500VAC/1min (leakage current 1mA) | ||
| Between contacts and coil | 1500VAC/1min (leakage current 1mA) | |||
| Ambient temperature | -25~+55℃ | |||
| Humidity | 35%~85%RH | |||
| Air pressure | 86~106KPa | |||
| Shock resistance | 10G(half-sine shock pulse: 11ms) | |||
| Vibration resistance | 10~55Hz double-amplitude: 1.5mm | |||
| Install model | PCB terminal | |||
| Weight | Approx.15g | |||
