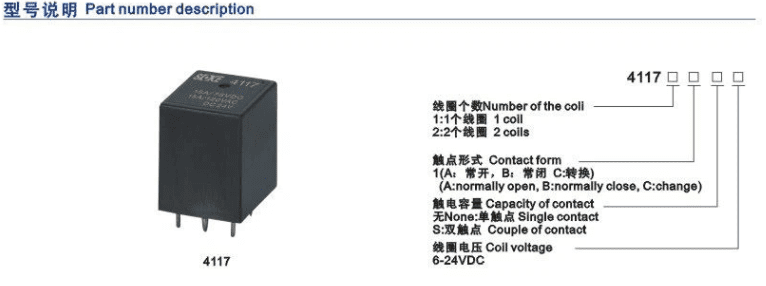

4117 PCB Power Relay
Features
Small size，low power consumption，high sensitivity.
Request A Quote
Share Our Social
FAQ：
1: If I want buy small quantity , how can I get it ?
A: We have distributor in UK, USA, Morocco, Malaysia, Germany and Ireland, you just tell me your where are you from, I can recommend my office to contact you.
2: What the warranty period ?
A: 6 month.
3: Can I brand the items with our own logo/Brand?
A: Welcome OEM and ODM.
4: Can you do design for me?
A: We have experienced designers, according to your requirement, we can add your company logo, website, phone number or any of your ideas on the products or on the box… Just tell me your ideas, and let me do it for you.
Automotive micro relay appliance
Our workshops have clean control, dust free, constant temperature and humidity. Everyone should on the anti-static clothes when enter workshop.
Characteristics
| Contact | Configuration | 1A, 1B, 1C | 2AS, 2BS, 2CS | |
| Rated Load(Ac-1) | 10A/120VAC,30VDC | 15A/120VAC, 30VDC | ||
| Operating power(Resistive) | 1200VA, 300W | 1800VA, 450W | ||
| Contact resistance(Initial) | ≤50mΩ | |||
| Material | Ag alloy | |||
| Electrical life | 1 × 105 cycles(1800 Ops/h) | |||
| Mechanical life | 1 × 107 cycles(1800 Ops/h) | |||
| Operate voltage(at 25℃) | ≤75%(rated voltage) | |||
| Release voltage(at 25℃) | ≥10% (rated voltage) | |||
| Max.Allowed voltago(at 25℃) | 110% (Rated voltage) | |||
| Insulation resistance | ≥100MΩ (50OVDC) | |||

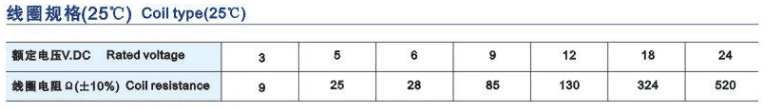

| Coll power consumption | DC (W) | 1.1 | ||
| Operate time (at nominal voltage) | ≤3ms | |||
| Release time (at nominal voltage) | ≤1.50ms | |||
| Dlelectrio Strength | Between contacts | 500VAC/1min (leakage current 1mA) | ||
| Between contacts and coil | 500VAC/1min (leakage current 1mA) | |||
| Ambient temperature | -25~+55℃ | |||
| Humidity | 35%~82%RH | |||
| Air pressure | 86~106KPa | |||
| Shock resistance | 10G(half-sine shock pulse: 11ms) | |||
| Vibration resistance | 10~55Hz double-amplitude: 1.0mm | |||

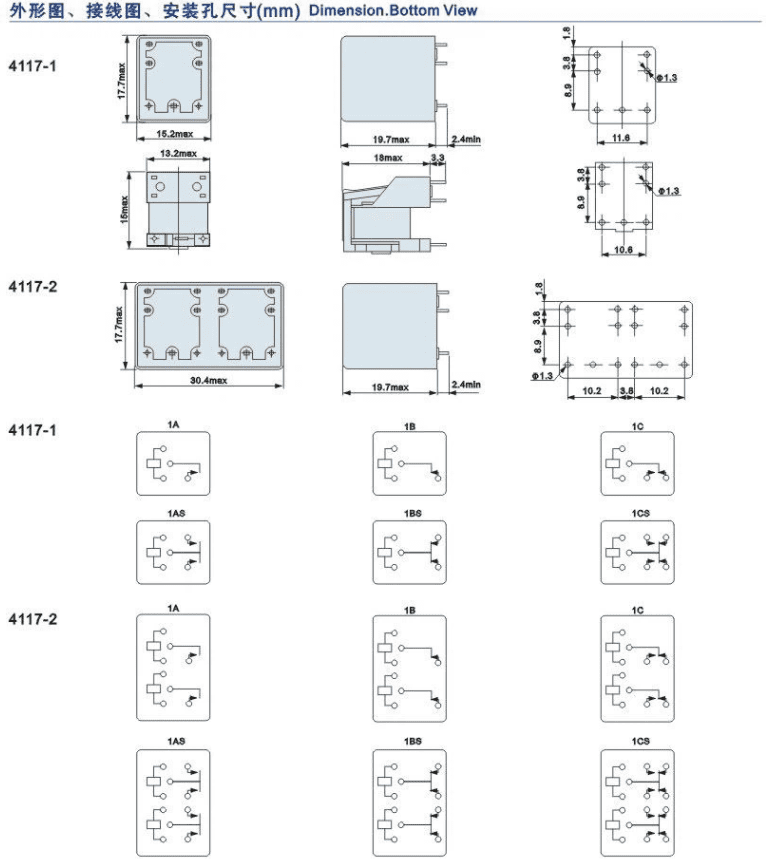

| Install model | PCB | |||
| Weight | 12g,24g | |||
