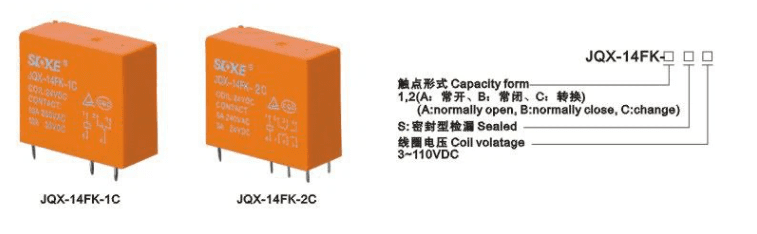

14FK PCB Power Relay
Features
Product features：Miniature size，high switching capacity，high sensltivity
Request A Quote
Share Our Social
FAQ：
1: How long does you take to process my order?
A: As soon as we receive your payment we process your order!
2: Are my details protected?
A: Absolutely! We care that every privacy has the right to be protected.
3: Is have ISO Certified?
A: Yes! We have passed the ISO 9001:2008 Quality Management System.
4: What products you have ?
A: We are manufacturing industrial relay products and relay base .
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Contact | Contact form | 1A, 1B, 1C | 2A, 2B, 2C | |
| Rated load (AC-1) | 10A/250VAC, 30VDC | 5A/250VAC, 30VDC | ||
| Operating power(Resistive) | 2500VA, 300W | 1250VA, 150W | ||
| lnitial contact resistance | ≤50mΩ | ||
| Material | Ag alloy | ||
| Electrical durability | 105cycles(1800 ops/h) | ||
| Mechanical durability | ≥107 cycles(1800 ops/h) | ||
| Operate voltage(at 25℃) | DC:≤75%Rated voltage | ||
| Release voltage(at 25℃) | DC:≥10%Rated voltage,AC:≥30%Rated voltage | ||
| Max.Allowed voltage(at 25℃) | 110% (Rated voltage) | ||
| Insulation resistance | ≥500MΩ (500VDC) | ||

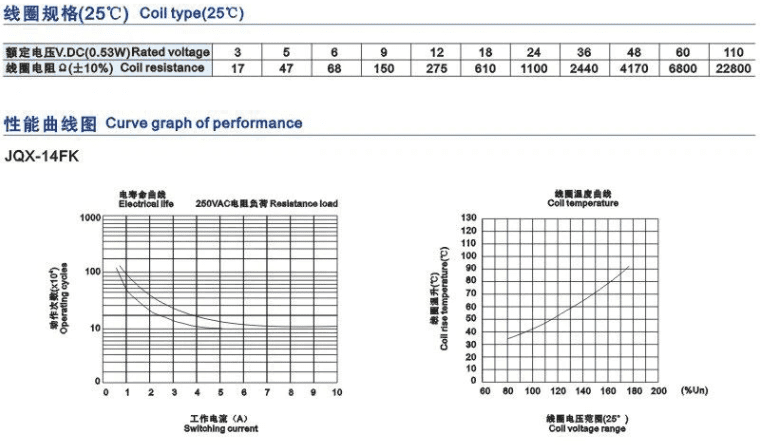

| Coil power consumption | DC(W） | 0.53 | |
| AC(VA) | |||
| Operate time | ≤20ms | ||
| Release time | ≤10ms | ||
| Dlelectric Strength | Between contacts | 1000VAC/1min (leakage current 1mA) | |
| Between contacts(different pole) | 1000VAC/1min (leakage current 1mA) | ||
| Between contacts and coil | 5000VAC/1min (leakage current 1mA) | ||
| Ambient temperature | -40~+70℃ | ||
| Humidity | 35%~85%RH | ||
| Air pressure | 86~106KPa | ||
| Shock resistance | 10G (half-sine shock pulse: 11ms) | ||
| vibration resistance | 10~55Hz double-amplitude:1.5mm | ||
| Install model | PCB terminal | ||
| Weight | Approx.33g | ||
| Like products | OMRON:G7G | ||
